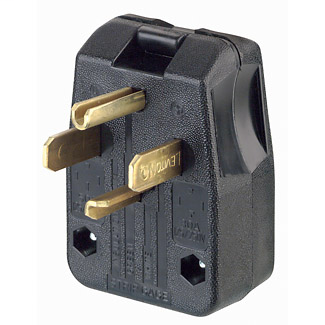

Leviton 275-T 125/250 Volt 30/50 Amp 3-Pole 4-Wire NEMA 14-30P/14-50P Black Thermoplastic Angled Polarized Straight Blade Plug

Manufacturer: Leviton | Catalog # 275-T | Codale Part # 42974
$56.46/ea
ea
Log in or register to view your price, purchase history, and more!
64 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
Leviton offers a large selection of 15, 20, 30 and 50 Amp Commercial Grade Straight Blade Plugs and Connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse-resistant, And they're ideal for indoor and outdoor use. Our EPTR rubber-backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep-slotted, backed-out terminal screws draw backwire clamps securely over stripped leads for maximum conductivity.

Technical Information

Amperage
30 Amp
Applications
Commercial
Blade Type
Brass
Body Material
Thermoplastic
Conductor Size
14-6 AWG
Contact Material
Brass
Cord Size
0.687 - 1.5 in
Dielectric
2000 V
Flamability Class
Rated V-2 Per UL 94
Grounding
Grounding
Material
Thermoplastic
Mounting Type
Cable
NEMA
14-30P,14-50P,WD-6
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Screw Type
Steel,Zinc-Plated
Size
3.49 H x 2.56 W x 1.44 D IN
Standard
ANSI C-73
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
150 %
Terminal Size
14-6 AWG
Type
Angled
Voltage
125/250 Volt
Wire Count
4
Wire Size
0.687-150 in

Manufacturer Information

Brand
Leviton

General Product Info

12-Digit UPC
078477771402
Color
Black,Black
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
Product UPC
07847777140
Weight
0.5800 lb

Dimensions

Warranty Length
2 yr

Certifications and Compliance

Country of Origin
Mexico
