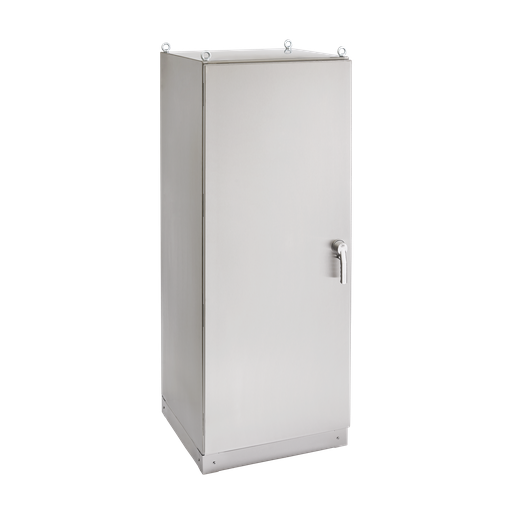

Product image for Hoffman FS180654SHP0 FS66S Freestand, 304 SS, Single Access, 3 Pt Latch, 4X, 1879x618x485mm, 12g
Image thumbnail 0
Image thumbnail 1
Email

Hoffman FS180654SHP0 FS66S Freestand, 304 SS, Single Access, 3 Pt Latch, 4X, 1879x618x485mm, 12g

Manufacturer: nVent Hoffman | Catalog # FS180654SHP0 | Codale Part # 4298362
$20,780.06/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
These enclosures are used in harsh industrial environments to house large components such as motor starters, drives, contactors and PLCs as well as a wide range of other electrical and electric equipment. A modular interior rail system (ProLine) provides an extensive range of mounting options. Whether your application calls for rack mounting, panel mounting or grid system mounting, a combination of ProLine components can deliver the right solution for ultimate equipment mounting flexibility and convenience. The FS66S enclosures are used extensively in oil and gas, water/wastewater, petrochemical and power plant environments and offer a perfect solution to outdoor DCS applications.

Technical Information

Applications
Corrosive Environments; Hygienic Environments; Controls and Drives
Gauge
12 AWG
Material
Stainless Steel
Size
1879x618x485mm
Type
Stainless Steel Freestanding Industrial Enclosures

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510271084
Color
Unpainted
Finish
Brushed
Product UPC
78351027108
Weight
305 lb

Dimensions

Depth
19.11 Inch
Height
73.97 Inch
Length
31 Inch
Thickness
2.78 mm
Width
24.32 in
DISK UNSPSC
39121324
Features
  • Internal grid mounting system and ProLine frame compatible for easy and fast panel installation
  • Enclosure with contents to support Standard duty 500Kg (1102 lb.) evenly distributed and Heavy duty 1000Kg (2205 lb.) evenly distributed
  • Uni-body design with seams continuously welded and ground smooth
  • Two-door enclosures provided with a removable center-post for easy panel installation
  • Heavy-duty stainless steel lifting eyes
  • Heavy-duty three-point latching mechanism operated by 316L stainless steel PowerGlide padlocking handle
  • Seamless foam-in-place gasket assures a water-tight and dust-tight seal
  • Body flange trough collar channels liquids and contaminants away from door opening and installed equipment
  • Removable hidden hinges
  • Built-in plinth base that allows for flexible cable entry
  • Gland plate on the bottom offers cable entry options
  • Painted or galvanized back panels can be rear-mounted in single-access enclosures and back-to-back in dual access enclosures
  • Bonding provision on door
  • Three-point latching and sealing provide industry-leading protection from dust, oil and water
