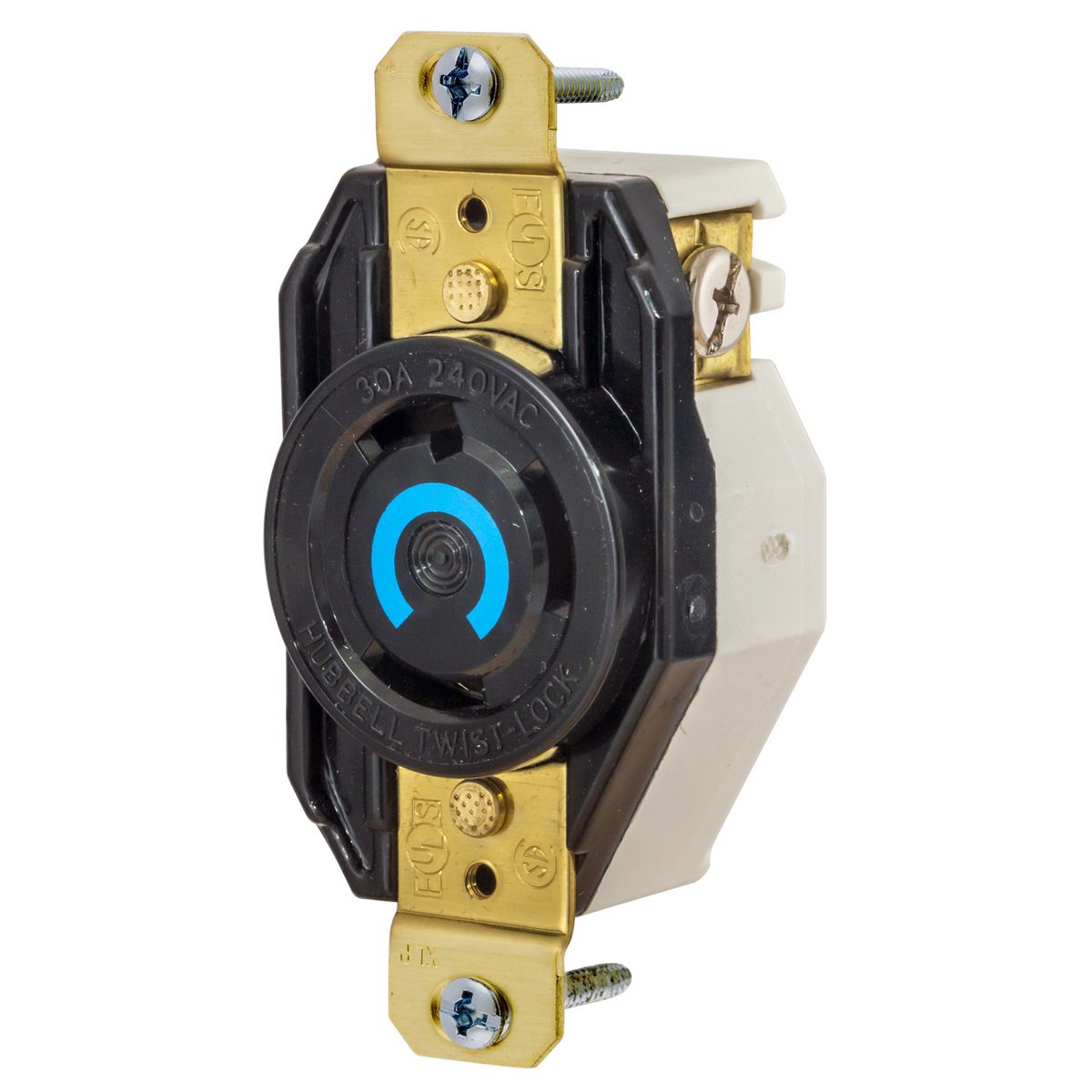

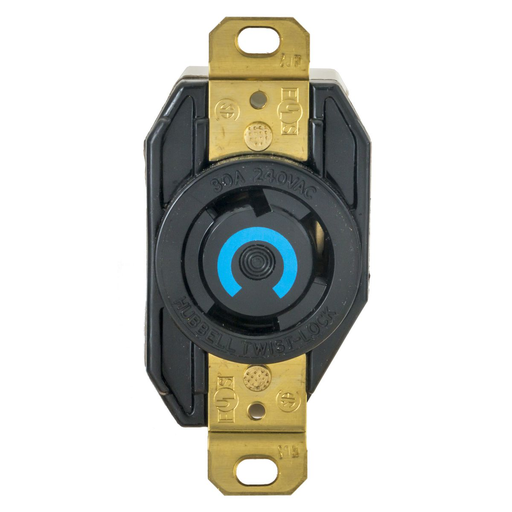

Product image for HWDK HBL2600 LKG RCPT, 30A 240V L-N
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

HWDK HBL2600 LKG RCPT, 30A 240V L-N

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2600 | Codale Part # 4300451
$155.57/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Single Flush Receptacle, 30A, 2 Pole, 3 Wire, 240VAC, Line to Neutral, NEMA L25-30R, Black nylon face, back and side wired

Technical Information

Amperage
30 Amp
Applications
For General and Industrial ID, Indoor/Outdoor Use
Conductor Size
16-8 AWG
Material
Thermoplastic
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
Standard Product
Standard
CSA 22.2,Fed. Spec. W-C-596,NEMA® WD-6,No. 42 File 285,UL File No. E2186
Tc Connection
Terminal Screws
Voltage
240 VAC
Wattage
7200 Watt
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Twist-Lock®, Variload®

General Product Info

12-Digit UPC
783585580319
Color
Black,Orange,White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product UPC
78358558031
Weight
0.2500 lb

Dimensions

Height
1.31 Inch
Length
3.28 Inch
Width
2.0 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Wire restraint recess for both back and side wiring, greatly reduces the possibility of loosening the terminal connection
  • Face color coding by voltage facilitates locating and mating of proper devices
  • All-brass mounting and grounding system provides a lower resistance ground path and greater resistance to corrosion than steel mounting systems
