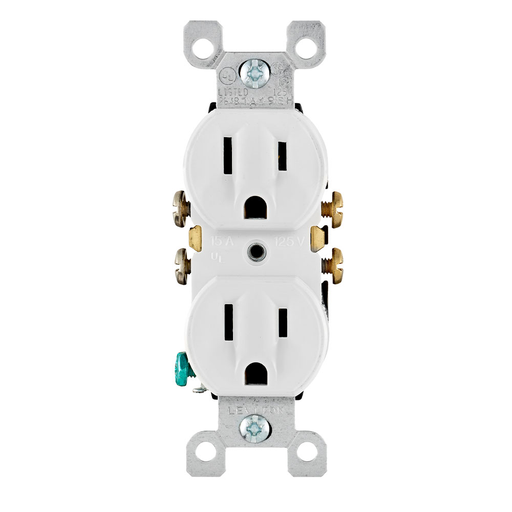

Leviton 5320-WCP  15A 125V Duplex Receptacle, Residential Grade, Grounding, Quickwire Push-In & Side Wired - White

Manufacturer: Leviton | Catalog # 5320-WCP | Codale Part # 43005
$1.60/ea
ea
Log in or register to view your price, purchase history, and more!
302 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
15 Amp, 125 Volt, Duplex Receptacle, Residential Grade, Grounding, All Screws Backed Out, Contractor Pack, White

Technical Information

Amperage
15 Amp
Applications
Commercial
Body Material
Thermoplastic
Conductor Size
14 AWG
Connection Type
Quickwire Push-In and Side Wired
Face Material
Thermoplastic
Grade
Commercial
Grounding
Grounding
Material
Thermoplastic
Mounting Type
Wallplate, Flush
NEMA
5-15R
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
4.2 H x 1.33 W x 19 D IN
Standard
CSA Certified (File LR-406),NOM Certified (057),UL Listed 1561,UL Listed 498
Tc Connection
Quickwire Push-In and Side Wired
Temperature Rating
-40 degrees C to 60 degrees C
Termination Type
Quickwire Push-In,Slide Wire
Torque
14 lb-in
Type
Outlet
Voltage
125 Volt
Wire Count
3
Wire Size
14 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
RESIDENTIAL RECEPTACLES

General Product Info

12-Digit UPC
078477151426
Color
White
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
Product UPC
07847715142
Weight
0.1000 lb

Dimensions

Warranty Length
2 yr

Certifications and Compliance

Certifications
UL
Country of Origin
Please Contact Customer Service
Features
  • Terminal screws accept #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire
  • Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
  • Levitons comprehensive Residential Grade Receptacles portfolio includes devices rated for all residential applications in a variety of standard configurations. They are produced in an array of colors in both Decora and traditional styles. All duplex receptacles are designed with thermoplastic construction and feature a shallow build for maximum wiring room. Each duplex is also equipped with break-off plaster ears and tabs to allow for easy alignment and two-circuit conversion.
NEMA
  • 5-15R
