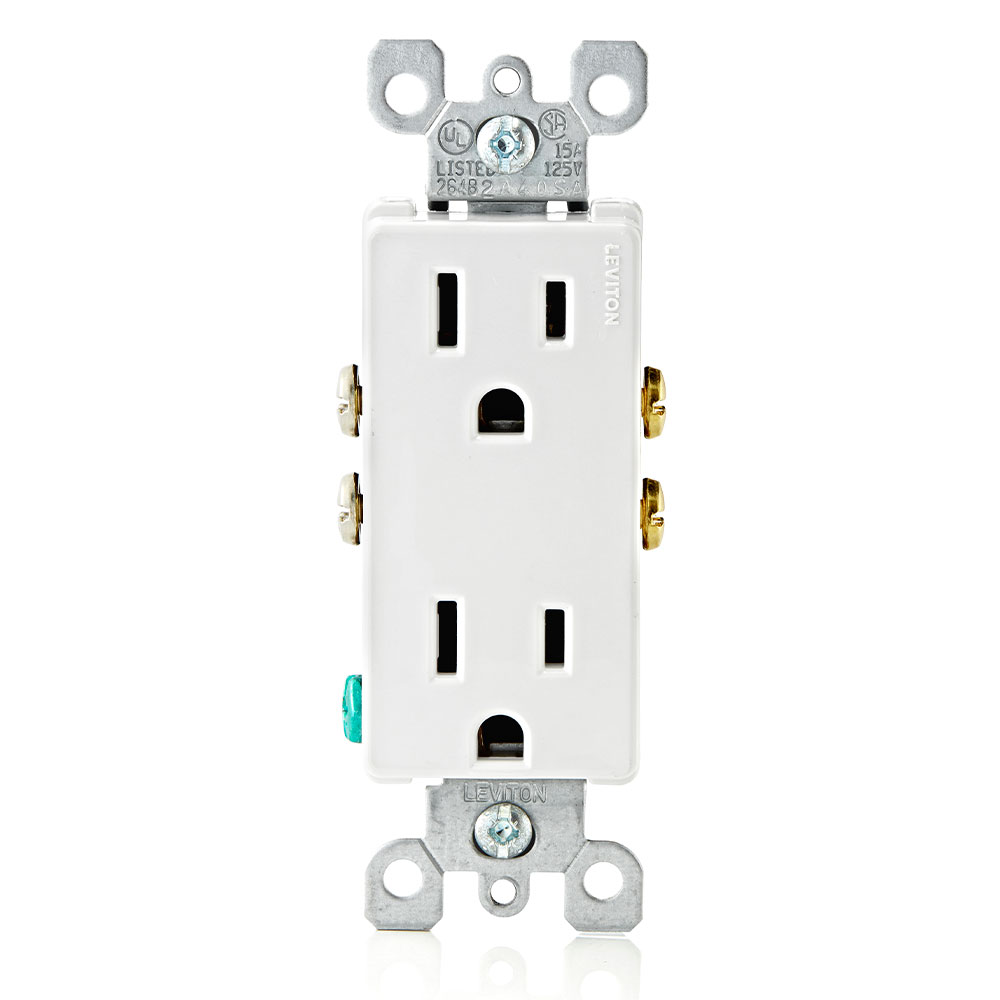

Product image for Leviton 5325-W 15amp 125v Decora Duplex Receptacle, White
Image thumbnail 0
Image thumbnail 1

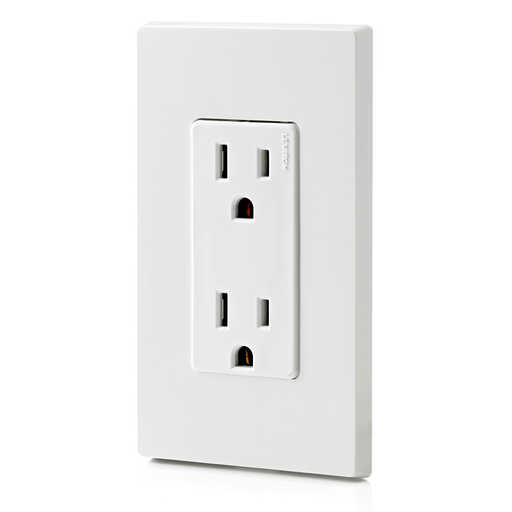

Image thumbnail 2

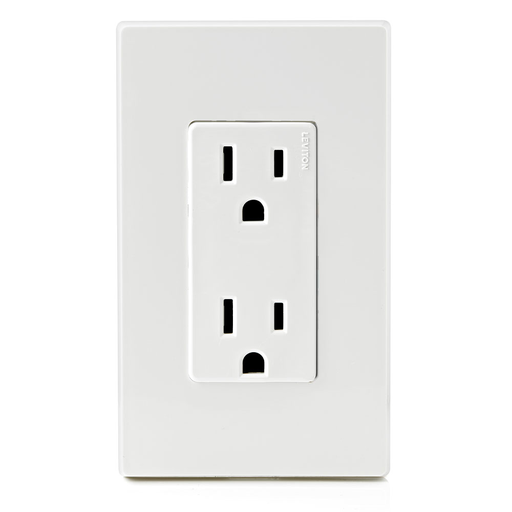

Image thumbnail 3

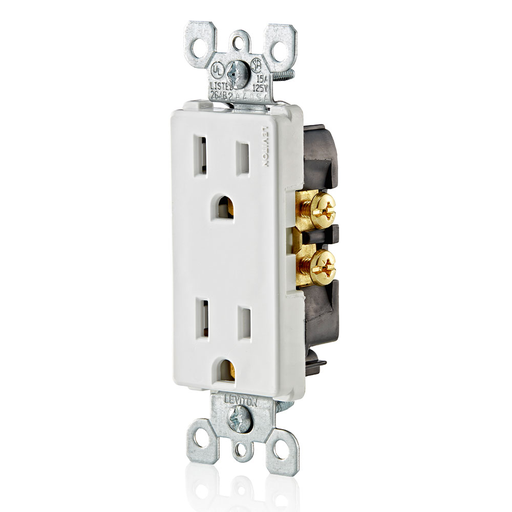

Image thumbnail 4
Image thumbnail 5
Email

Leviton 5325-W 15amp 125v Decora Duplex Receptacle, White

Manufacturer: Leviton | Catalog # 5325-W | Codale Part # 43007
$3.56/ea
ea
Log in or register to view your price, purchase history, and more!
1,301 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
15 Amp, 125 Volt, Decora Duplex Receptacle, Residential Grade, Grounding, White

Technical Information

Amperage
15 Amp
Applications
Commercial
Body Material
Thermoplastic
Conductor Size
14-12 AWG
Connection Type
Quickwire Push-In and Side Wired
Face Material
Thermoplastic
Flamability Class
Rated V-2 Per UL 94
Grade
Commercial
Grounding
Grounding
Material
Thermoplastic
Mounting Type
Wallplate, Flush
NEMA
5-15R
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
4.20 H x 1.31 W x 0.98 D IN
Standard
CSA,UL
Tc Connection
Quickwired, Side Wire
Temperature Rating
-40 degrees C to 60 degrees C
Termination Type
Quickwire Push-In,Slide Wire
Torque
14 lb-in
Type
Outlet
Voltage
125 Volt
Wire Count
3
Wire Size
14-12 AWG

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477233306
Color
White
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
Product UPC
07847723330
Weight
0.1100 lb

Dimensions

Warranty Length
2 yr

Certifications and Compliance

Country of Origin
Please Contact Customer Service
Features
  • Terminal screws accept #10, #12 and #14 AWG copper (CU) or #10 and #12 copper clad (CC) wire
  • Quickwire push-in terminals accept #14 AWG solid copper (CU) wire only
  • Shallow depth for maximum wiring room
  • Double-wipe power contacts for reliable conductivity and plug retention
  • Heavy-gauge zinc-plated steel mounting strap
  • Additional material added to strap to help reinforce and prevent excessive bending of the break-off tabs
  • Limited 2-year warranty
  • EASY - Quick wire push-in and side wiring for easy installation
  • DURABLE - Impact-resistant thermoplastic nylon construction
  • CONVENIENT - Shallow depth for maximum wiring room
  • COMPATIBLE - For use with Leviton Decora wallplates
Color Variations
  • Brown
NEMA
  • 5-15R
