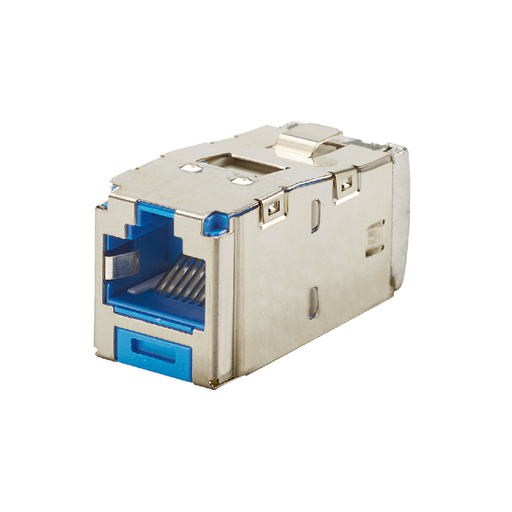

Panduit CJS6X88TGBUY STP RJ45 Cat 6A TG Jack Module, Blackue

Manufacturer: PANDUIT | Catalog # CJS6X88TGBUY | Codale Part # 4300862
$44.17/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Installation / Instruction Manual
The Mini-Com® Cat 6A Shielded RJ45 TG Jack Module is designed to terminate shielded 4-pair, 22-26 AWG twisted pair cable. Each module is 100% factory tested to exceed industry standard performance requirements. TG style termination eliminates the need for a termination tool. Each jack is individually serialized for traceability and is compatible with Mini-Com Modular Patch Panels and Faceplates.

Technical Information

Applications
For High Bandwidth Applications with Data Centers and Connections to High End Workstations Such as Stacking Switches and Switch to Switch Links, Storage Area Networks, Aggregation of Gigabit Ethernet Channels, Real Time Intensive Financial Transactions, Streaming Video, Animation, Scientific Modeling and Medical Imaging
Cable Entry
T568A/T568B
Cable Size
26-22 AWG
Cable Type
Category 6A, Solid or Stranded
Material
ABS Plastic
Max Operating Temperature
167 degrees F
Min Operating Temperature
-10 degrees C
Number of Positions
8
Performance Level
Category 6A
Temperature Rating
-10 to 65 degrees C
Type
Shielded, Universal, RJ45, 8-Wire

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
10Gig™, Mini-Com, TX6A™

General Product Info

12-Digit UPC
074983945221
Color
Blue
Environmental Conditions
14 F
Product UPC
07498394522
UNSPSC
43223301
Used With
T568A/T568B Cable
Weight
0.0400 lb

Dimensions

Depth
1-1/2 Inch
Height
0.74 Inch
Overall Length
1.5 in
Width
15.7 mm

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Costa Rica
Standards and Certifications
  • Standards Met: Exceeds Channel and Component Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
