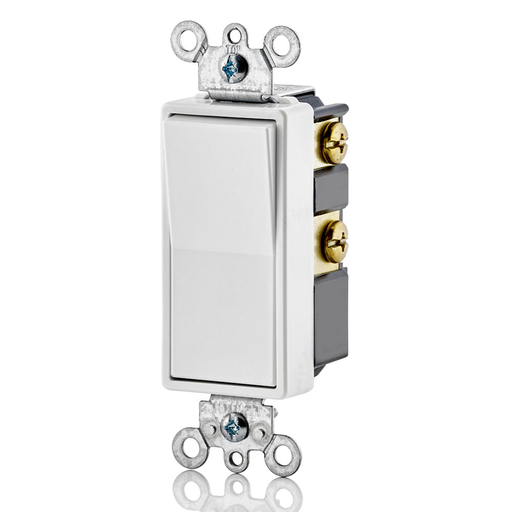

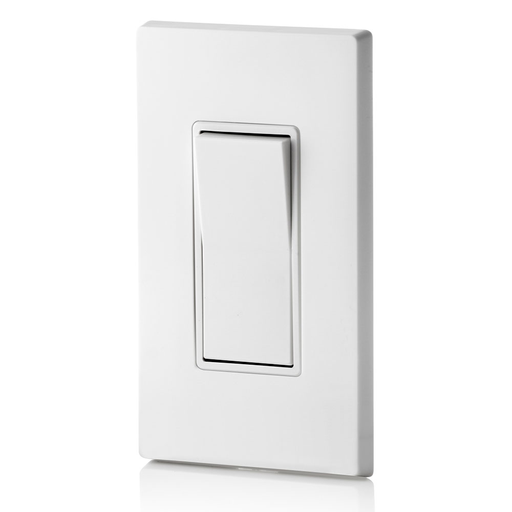

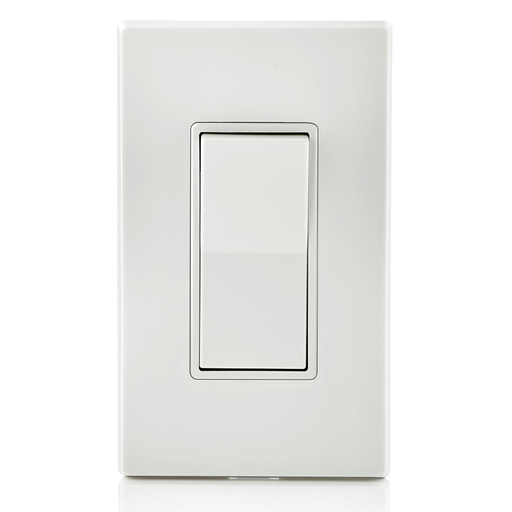

Leviton 5604-2W 15amp White 4 Way Decora Switch

Manufacturer: Leviton | Catalog # 5604-2W | Codale Part # 43017
$20.43/ea
ea
Log in or register to view your price, purchase history, and more!
943 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
15 Amp, 120/277 Volt, Decora Rocker 4-Way AC Quiet Switch, Residential Grade, Grounding, White

Technical Information

Actuator
Rocker/Button
Amperage
12 Amp
Applications
Residential
Body Material
Thermoplastic
Connection Type
Quickwired Push-In,Side Wired
Contact Rating
120/277 VAC, 15 A
Grounding
Grounding
Horsepower
1/2 hp
Material
Thermoplastic
Max Current
12 A
Mounting Type
Wallplate
Number of Poles
4 Pole
Operating Temperature
-40 To 120 degrees C
Size
4.20 H x 1.30 W x 0.99 D IN
Standard
CSA,UL
Tc Connection
Quickwired Push-In, Side Wired
Temperature Rating
-40 to 120 degrees C
Terminal Type
Screw
Termination Type
Back Wire,Side Wire
Torque
14 lb-in
Type
Quiet, 4-Way
Voltage
120/277 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
Decora®

General Product Info

12-Digit UPC
078477882672
Color
White
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
Product UPC
07847788267
Weight
0.1900 lb

Dimensions

Warranty Length
2 yr

Certifications and Compliance

Country of Origin
Mexico
Features
  • Switch frame shields against dust and fits in wallplate to prevent rocker binding
  • Terminal screws accept up to #12 AWG copper or copper-clad wire
  • Sturdy construction for long service life
  • Full-rated current capacity with tungsten, fluorescent or resistive loads. Motor capacity is 80% of switch rating
  • Compliments ever dcor
  • Limited 2-year warranty
  • NOTE: In Canada, a general-use switch does not require attachment to a grounding/bonding wire when installed in a grounded/bonded flush device box.
  • CONVENIENT Quiet 4-way switch that controls load from 3 locations
  • DURABLE Impact-resistant thermoplastic nylon construction
  • EASY Side and back wiring for easy installation
  • COMPATIBLE For use with Leviton Decora wallplates
