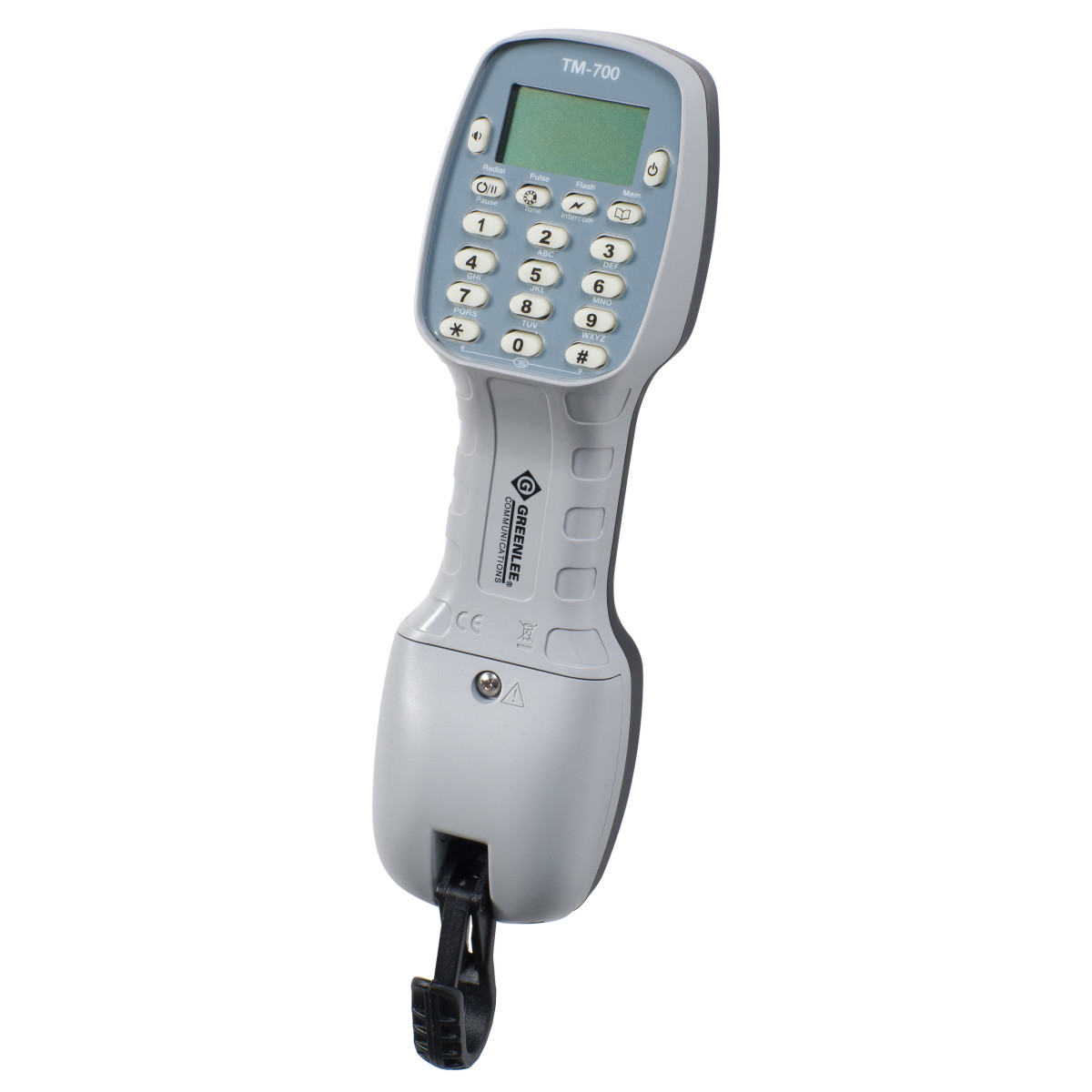

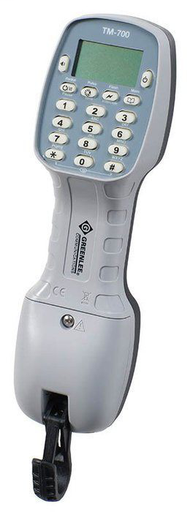

GRN TM-700I BUTT SET, (SML CLIPS &

Manufacturer: Greenlee | Catalog # TM-700I | Codale Part # 4301847
$273.99/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Tele-Mate™ 700 Butt Set. LCD (96 x 48 pixels, 5 lines) displays the following: Caller ID (name and number) and Call Waiting. Dialed number. Over-voltage conditions. Phone status (monitor, on hook etc.). Line Voltage: 110 Vdc max. Loop Current: 125 mA max. Ring Frequency: 15-70 Hz. High impedance monitor enables use on DSL line. Ergonomic shape. 32 digit memories. 10 x speed dial memories plus ten "last number redial" stores. Over voltage and over current protection and warning. Tone and pulse dialling for versatility. Flash key for timed-break recall. Pause which can be stored. Headset included for hands-free operation (HS-001). RJ11 socked and anchorage for strain relieved cords. Several cord options CS-01, CS-02, CS-03, CS-04, CS-05, CS-06, CS-07. Cordset with small crocodile clips.

Technical Information

Applications

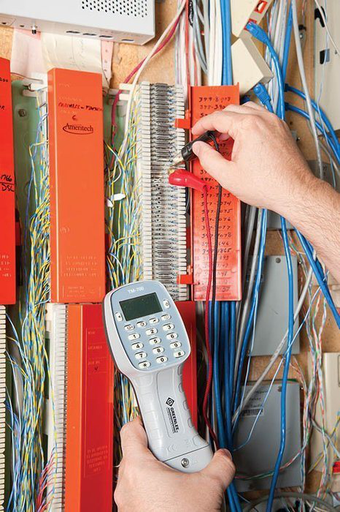

Test Telephone with High-impedance monitor, LCD, Smart Intercom, Calling Line ID, Pair tracing toner, DTMF decoding, Multiple last-number redial and ten speed-dial memories
Standard
TIA/EIA-470-B And ETSI
Type
Tele-Mate Pro

Manufacturer Information

Brand
Greenlee
Sub Brand
Tele-Mate

General Product Info

12-Digit UPC
783310009771
Product UPC
78331000977
Weight
0.1230 lb
Features

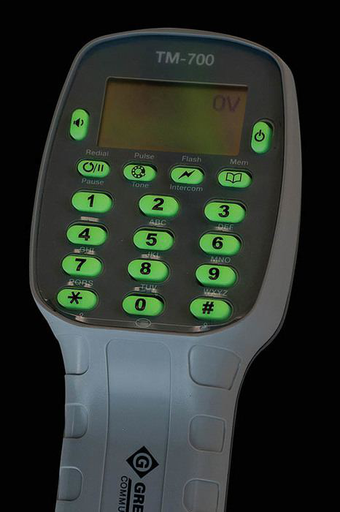

  • LCD (96 x 48 pixels, 5 lines) displays the following: Caller ID (name and number) and Call Waiting
  • Dialed number
  • Over-voltage conditions
  • Phone status (monitor, on hook etc.)
  • Line Voltage: 110 Vdc max
  • Loop Current: 125 mA max
  • Ring Frequency: 1570 Hz. High impedance monitor enables use on DSL line.
  • Ergonomic shape.
  • 32 digit memories.
  • 10 x speed dial memories plus ten \"last number redial\" stores.
  • Over voltage and over current protection and warning.
  • Tone and pulse dialling for versatility.
  • Flash key for timed-break recall.
  • Pause which can be stored.
  • Headset included for hands-free operation (HS-001).
  • RJ11 socked and anchorage for strain relieved cords.
  • Several cord options CS-01, CS-02, CS-03, CS-04, CS-05, CS-06, CS-07.

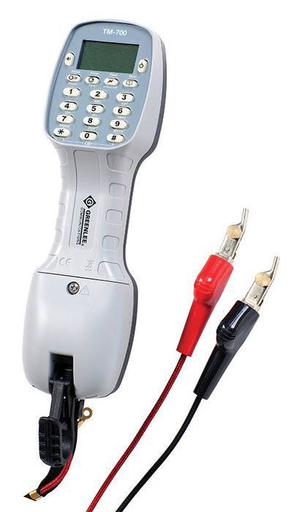

  • Cordest with small crocodile clips.
