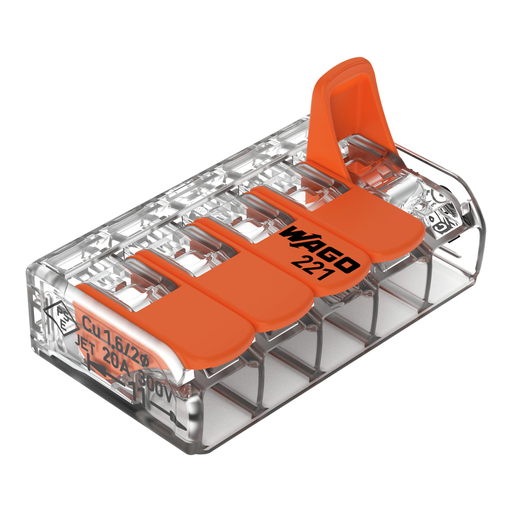

Product image for WAGO 221-415/K194-4045 60267607 PACK OF 25 = QNTY OF 1
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

WAGO 221-415/K194-4045 60267607 PACK OF 25 = QNTY OF 1

Manufacturer: Wago Wire Connectors | Catalog # 221415 | Codale Part # 4302116
$30.15/ea
bx
Log in or register to view your price, purchase history, and more!
51 available

For Delivery

Not in local stock *
Check your local branch
WAGO 221-415/K194-4045 60267607 PACK OF 25 = QNTY OF 1

Technical Information

Actuator
Lever
Conductor Material
Copper
Conductor Size
12 AWG
Current
32 Amp
Flamability Class
V2
Insulation Material
Polycarbonate
Number of Connections
5
Operating Temperature
105 degrees C
Strip Length
0.43 in

Manufacturer Information

Brand
Wago

General Product Info

12-Digit UPC
508218971490
Color
Transparent
Product UPC
50821897149
Weight
4.048 g

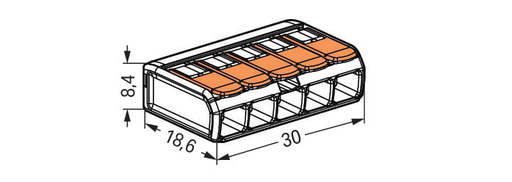

Dimensions

Depth
0.732 Inch
Height
0.327 Inch
Width
1.181 in

Certifications and Compliance

Country of Origin
Germany
Features
  • Ease of use pull the lever up, insert a conductor and push the lever back down
  • Available as 2-, 3- and 5-wire connectors
  • Easily terminate conductors from 0.14 to 4 mm²
  • Connect solid, stranded and fine-stranded conductors
  • Save time for installers and device manufacturers
  • Quickly install devices with higher power consumption
  • Safely install long cable runs with larger conductor cross sections
  • Mounting carrier for installation conforms to standards
  • Custom carriers are possible
Approvals
  • DEKRA Certification B.V., CCA, NTR NL-7827, EN 60998
  • Lloyds Register, LR, LR22207029TA, EN 60998
  • UL International Germany GmbH, UL_Listed_64KA, E201573, UL 467
  • UL International Germany GmbH, UL, E69654, UL 486C
  • Det Norske Veritas, Germanischer Lloyd, DNV GL, TAE000015T, EN 60998
  • American Bureau of Shipping, ABS, 18-HG1755093-PDA
  • DEKRA Certification B.V., ENEC 05, 71-113253 REV.1, EN 60998
Accessory Products
  • 207-1332
  • 207-4301
  • 221-500
  • 221-500/000-006
  • 221-500/000-053
  • 221-505
  • 221-505/000-004
  • 221-515
  • 221-515/000-004
  • 221-525
  • 221-525/000-004
  • 221-941
  • 221-941/000-006
  • 221-942
  • 221-942/000-006
