HCI HBL29W08 WATERTIGHT CONN, NON-N

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL29W08 | Codale Part # 4302243
$81.22/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

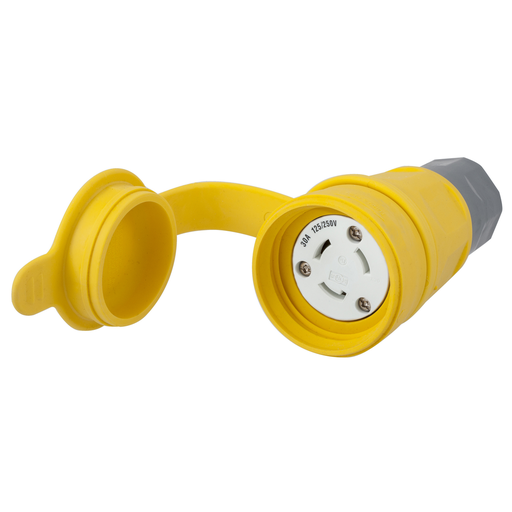

Watertight Devices, Twist-Lock® Connector, 30A, 125/250V AC, 3 Pole, 3 Wire, Thermoplastic elastomer, NON-NEMA, Yellow.

Technical Information

Amperage
30 Amp
Applications
For Industrial, Commercial
Body Material
Thermoplastic Elastomer
Conductor Size
14-10 AWG
Contact Material
Nickel-Plated Brass
Cord Size
0.385 - 0.93 in
Current
30 Amp
Dielectric Strength
2500 VAC
Grounding
Grounding
Material
Composite
Mounting Type
Cord
Number of Conductors
3-Wire Non-Grounding
Number of Poles
3 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass
Size

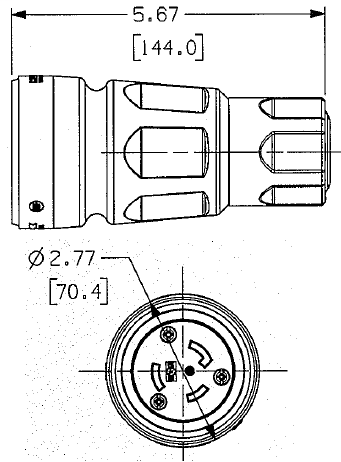

2.77 in x 2.77 in x 5.67 in
Standard
ANSI Standards,Meets NEMA WD-1,WD-6
Tc Connection
Terminal Screws
Temperature Rating
-40 to 75 degrees C
Type
Connector Body
Voltage
125/250 Volt
Wire Count
3

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585456447
Color
Yellow
Environmental Conditions
UV-Resistance, Moisture-Resistance
Product UPC
78358545644
Weight
0.3000 lb

Dimensions

Height
5.67 Inch
Length
2.77 Inch
Width
2.77 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
