Hubbell HBLS360R6W SW Receptacle, 2P3W, 60A 250V/63A220-240V, 4X/69K

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBLS360R6W | Codale Part # 4302663
$1,309.56/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

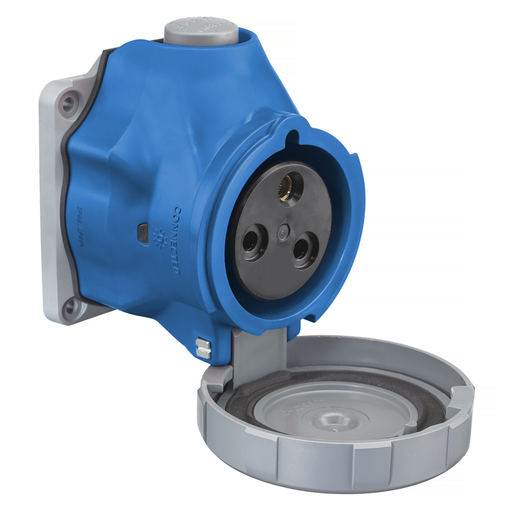

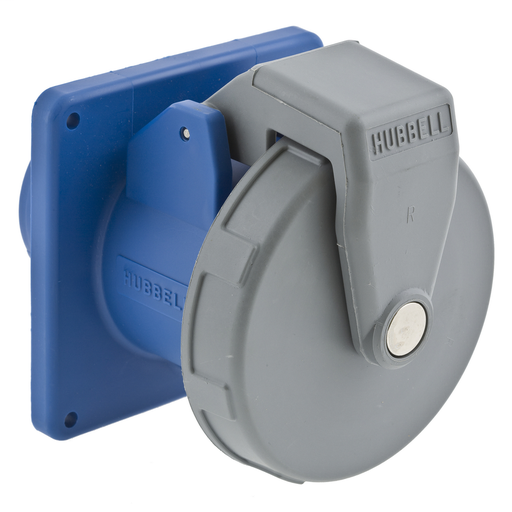

Heavy Duty Products, IEC Pin and Sleeve, Receptacle, Switched, 60A 250V AC/220-240V AC, 2-Pole 3-Wire Grounding,NEMA 4X/IP69K

Technical Information

Amperage
63 Amp
Applications
Commercial Grade
Conductor Size
14-12 AWG
Current
60 Amp
Dielectric Strength
2,000V for 1 Minute
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
Standard Sized Products
Style
IP69k NEMA 4X
Tc Connection
Back and Side Wired Terminal Screws
Temperature Rating
-40 to 70 C
Type
Switched
Voltage
250 Volt
Wattage
3750 Watt
Wire Size
14-12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
783585478548
Color
Blue
Finish
Smooth
Product Series
Rated,Advantage Switch
Product UPC
78358547854
Weight
2.5500 lb

Dimensions

Height
5.9 Inch
Length
7.4 Inch
Width
6.400 in

Certifications and Compliance

Country of Origin
USA
Features
  • Mates with existing installed base of IEC 60309-2 pin and sleeve devices
  • Approved as a diconnecting means for motor circuits and branch circuits
  • UL Type 4X, 12 and IP69k environmental ratings
  • Impact and corrosion-resistant PBT that is color coded by voltage
  • Unswitched ground and power indicating LED lights
