Hubbell HBL28W77 Plug, w/TIGHT, 3P 30A 600V, L17-30P, YL

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL28W77 | Codale Part # 4302776
$125.05/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Watertight Devices, Twist-Lock® Plug, 30A, 3 Phase 600V AC, 3 Pole, 4 Wire, Thermoplastic elastomer, NEMA L17-30P, Yellow

Technical Information

Amperage
30 Amp
Applications
Industrial/Commercial
Body Material
Thermoplastic Elastomer
Conductor Size
Min Cords: 12/3 SJ, 16/3 S, 14/4 SJ, 18/4 S, 18/5 S;Max Cord: 8/3 S, 8/4 S, 10/5 S
Cord Type
All Portable
Current
30 Amp
Material
Thermoplastic

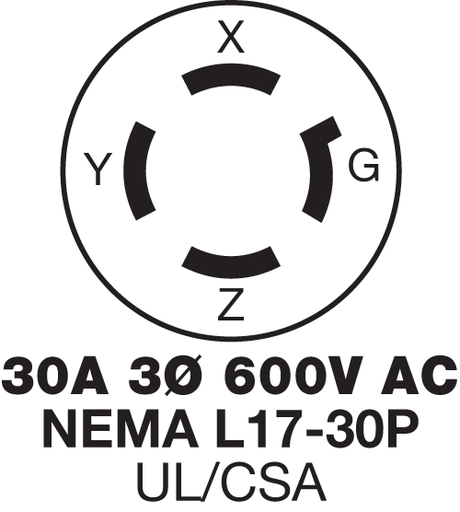

NEMA
L17-30P
Number of Phases
3 Phase
Number of Poles
3 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass

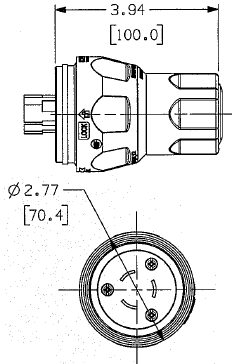

Size
2.77 in x 2.77 in x 3.94 in
Standard
ANSI Standards,Meets NEMA WD-1,WD-6
Tc Connection
Screw Terminals
Type
Straight Angled
Voltage
600 Volt
Wire Count
4
Wire Size
Min Cords: 12/3 SJ, 16/3 S, 14/4 SJ, 18/4 S, 18/5 S;Max Cord: 8/3 S, 8/4 S, 10/5 S

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Watertight®

General Product Info

12-Digit UPC
783585131740
Color
Yellow
Environmental Conditions
Watertight
Product UPC
78358513174
Weight
0.2500 lb

Dimensions

Height
3.94 Inch
Length
2.77 Inch
Width
2.77 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
