HCI HBL29W77 CONN, W/TIGHT, 3P 30A

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL29W77 | Codale Part # 4302778
$223.82/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

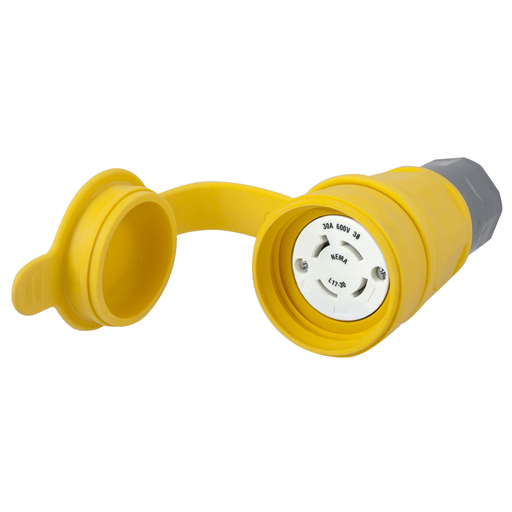

Watertight Devices, Twist-Lock® Connector, 30A, 3 Phase 600V AC, 3 Pole, 4 Wire, Thermoplastic elastomer, NEMA L17-30R, Yellow

Technical Information

Amperage
30 Amp
Applications
Industrial/Commercial
Body Material
Thermoplastic Elastomer
Conductor Size
14-12 AWG
Connection Type
Screw Terminal
Contact Material
Nickel Plated Brass
Current
30 Amp
Material
Thermoplastic

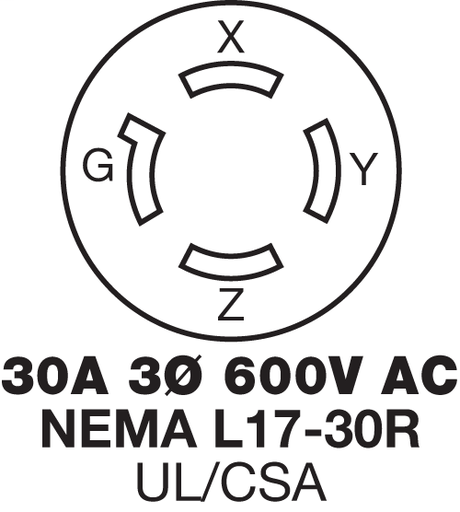

NEMA
L17-30R
Number of Conductors
4-Wire Grounding
Number of Phases
3 Phase
Number of Poles
3-3 Pole
Number of Wires
4 Wire
Operating Temperature
-40 degrees C
Screw Material
Nickel Plated Brass

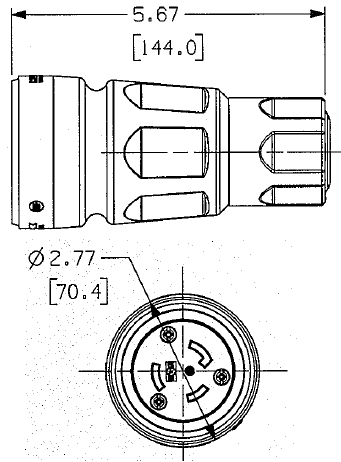

Size
2.77 in x 2.77 in x 5.67 in
Standard
ANSI Standards,Meets NEMA WD-1,WD-6
Tc Connection
Terminal Screws
Temperature Rating
-40 to 60 degrees C Continuous
Type
Watertight, Standard, Non-Shrouded
Voltage
600 Volt
Wire Count
4

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585131917
Color
Yellow
Environmental Conditions
Water Tight
Product UPC
78358513191
Weight
0.2500 lb

Dimensions

Diameter
2.77 Inch
Height
5.67 Inch
Length
5.67 Inch
Width
2.77 in

Certifications and Compliance

Country of Origin
Puerto Rico
Features
  • Smooth body design minimizes collection points simplifying the wash down process
  • Strain relief nut always seals on the body, minimizing debris collection
  • Stainless steel hardware and corrosion-resistant connection points
