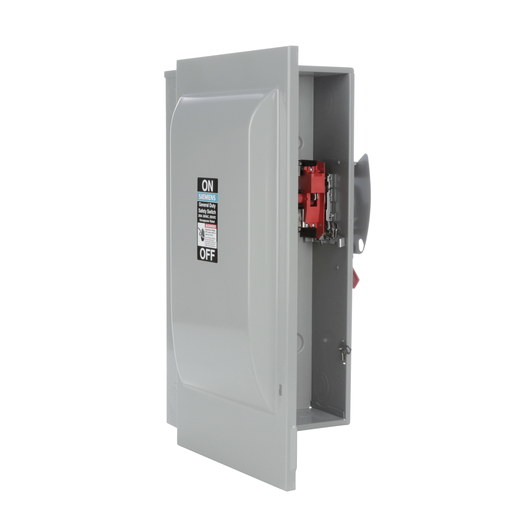

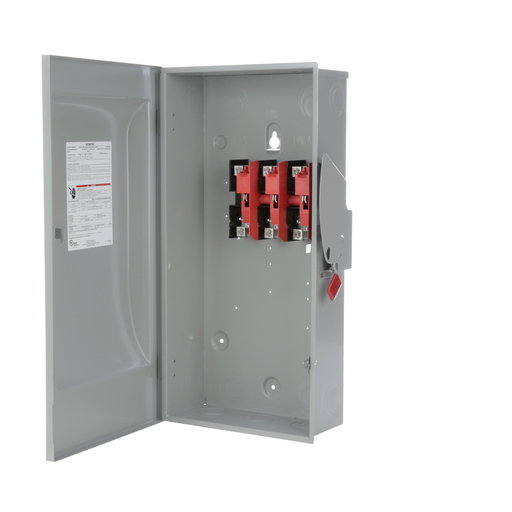

Siemens GNF324 240 VAC/250 VDC 200 Amp 3-Pole 3-Wire NEMA 1 General Duty Non-Fusible Safety Switch

Manufacturer: Siemens | Catalog # GNF324 | Codale Part # 430513
$542.99/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Siemens Low Voltage Circuit Protection General Duty Safety Switch. 2-Pole or 3-Pole Non-Fused in a type 1 enclosure (indoor). Rated 240VAC (200A). Horse power: 1-PH 2-W (15), 3-PH 3-W (60), 250VDC (40). Special features: service entrance labeled suitable for 3-PH motor loads.

Technical Information

Action
SINGLE THROW
Actuator
SINGLETHROW
Ambient Temperature
-29 degrees C
Amperage
200 Amp
Applications
DISCONNECTINGMEANFORSERVICEENTRANCE/LOADS
Enclosure
NEMA1
Frequency
60 Hz
Insulated?
No
Material
Steel
Mounting Type
2 or 3 Point Mounting Holes
NEMA Size
1
Net Weight
38,272 lb
Number of Poles
3 Pole
Number of Wires
3 Wire
Operating Cycles
8000
Operating Temperature
-20 To 120 degrees F
Standard
UL
Tc Connection
MECHANICALLUGS
Type
Non-Fusible
Voltage
240 Volt
Wattage
3 Watt

Manufacturer Information

Brand
Siemens
Sub Brand
VBII

General Product Info

12-Digit UPC
783643149168
Product UPC
78364314916
Weight
38.200 lb

Dimensions

Height
10.2 Inch
Length
33.7 Inch
Width
20.100 in

Certifications and Compliance

Country of Origin
Mexico
