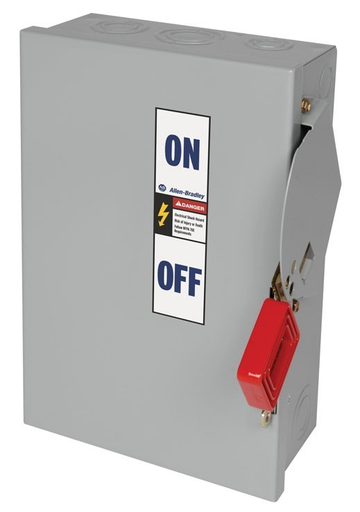

Product image for A-B 1494H-EA3H2 Heavy Duty Fusible
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Email

A-B 1494H-EA3H2 Heavy Duty Fusible

Manufacturer: Allen Bradley / Rockwell | Catalog # 1494H-EA3H2 | Codale Part # 4307469
$1,568.62/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Heavy Duty Fusible Safety Switch

Technical Information

Amperage
200 Amp
Applications
For Indoor and Outdoor Applications
Conductor Size
2 AWG-250 kcmil
Connection Type
Screw, Lug
Contact Configuration
DPDT
Fuse Type
Class H
Load Rating
60 hp at 230 VAC, 125 hp at 460 VAC, 150 hp at 575 VAC, 40 hp at 250 VDC
Number of Poles
3 Pole
Number of Wires
4 Wire
Operating Cycles
10000 Mechanical, 6000 Electrical
Temperature Rating
-35 to 40 degrees C Operating, -40 to 65 degrees C Storage
Type
Fusible, Heavy-Duty, General Purpose, Single Throw
Voltage
600 VAC, 250 VDC, 240 Volt
Wire Size
2 AWG-250 kcmil

Manufacturer Information

Brand
Allen-Bradley

General Product Info

12-Digit UPC
662074659678
Environmental Conditions
90% at 20 C, 50% at 40 C
Finish
Painted, Bronze Chromate
Housing Material
Phenolic, Tin Plated Copper, Metal
Product UPC
66207465967
Weight
32.9600 lb
Features
  • Offers field-installed accessories
  • Includes conduit holes in Type 1 and 3R enclosures for wiring convenience
  • Includes lockable handle
  • Includes fully-exposed switch blades
  • Internal mounting holes for time saving installation
  • For use in indoor and outdoor applications
  • NFPA 79 compliant switch, mechanism and handle are always connected, even when the door is open
  • Lower profile requires less space
