HWDK HBL7551 LKG FLG-INLET, MIDGET,

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL7551 | Codale Part # 4307645
$112.34/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page

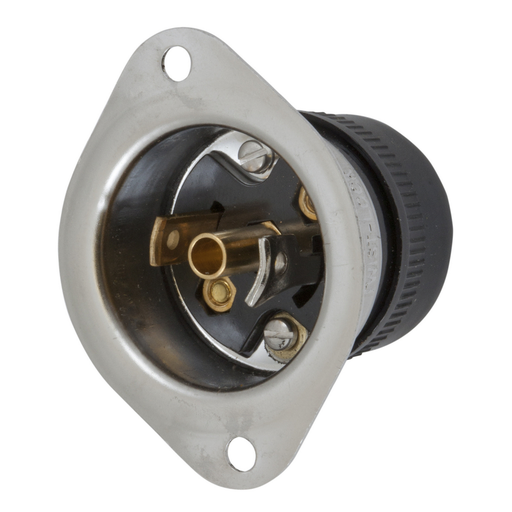

Twist-Lock® Devices, Midget Flanged Inlet, 15A 125V, NEMA ML-2P, Covered terminals, stainless steel flange, accepts cord .500" (12.7) dia.

Technical Information

Amperage
15 Amp
Applications
Heavy Duty Industrial
Conductor Size
18-14 AWG
Current
15 Amp
Dielectric Strength
Withstands 2,000V minimum
Material
Stainless Steel
NEMA
ML-2P
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Screw Material
#8-32 Brass,Brass, Zinc Plated
Size
Midget Locking
Standard
CSA C22.2 No.42,UL 498
Tc Connection
Screw Terminals
Temperature Rating
-40 degrees C
Type
Standard Single
Voltage
125 Volt
Wattage
1875 Watt
Wire Size
18-14 AWG

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Twist-Lock Inlets

General Product Info

12-Digit UPC
783585237619
Color
Black
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product UPC
78358523761
Weight
0.10 lb

Dimensions

Height
1.54 Inch
Length
2.42 Inch
Width
2.420 in

Certifications and Compliance

Country of Origin
USA
Features
  • Stainless Steel mounting flange
  • High heat resistant phenolic base
  • Covered Terminals, Metallic Flange
