Panduit LCB4/0-12-X 1-Hole 4/0 AWG 1/2 Inch Stud Hole Copper Compression Lug

Manufacturer: PANDUIT | Catalog # LCB4/0-12-X | Codale Part # 4309235
$3,203.51/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
551 available

For Delivery

Not in local stock *
Check your local branch
Prop 65 Warning Prop 65 Warning Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual

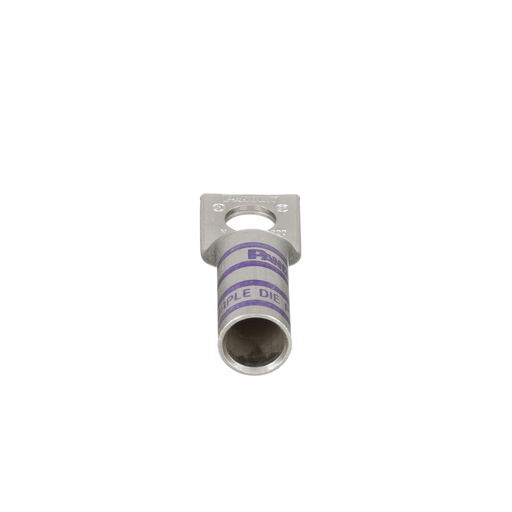

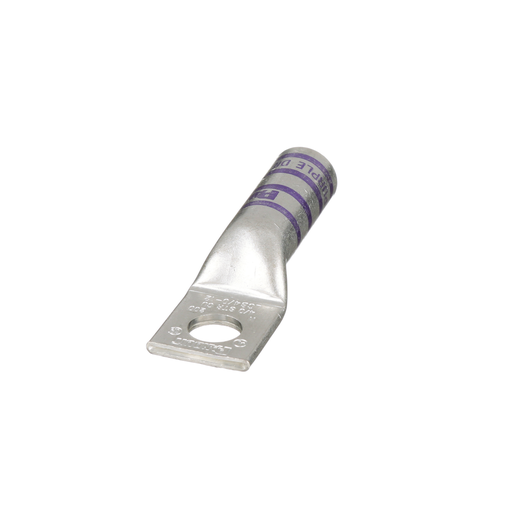

The LCB4/0-12-X Tin-Plated Copper Compression Connector Lug, one-hole, long barrel, has color-coded barrels marked with Panduit and specified competitor die index numbers for proper crimp die selection. The long barrel maximizes the number of crimps and provides premium wire pull-out strength and performance. The enclosed barrel prevents corrosive material from entering the barrel when used in harsh environments. UL Listed and CSA Certified.

Technical Information

Angle
Straight
Barrel Length
1.56 in
Barrel Type
Long
Cable Size
AWG
Color Coding
Purple
Material
Copper
Number of Holes
1 Hole
Size
4/0 AWG Code
Stud Size
0.5 in
Tongue Thickness
0.14 in
Tongue Type
Standard
Tongue Width
1.06 in
Type
Type LCB
Voltage
35000 Volt

Packaging

Pkg Qty
10

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Lug™

General Product Info

12-Digit UPC
074983901401
Color
Purple
Finish
Tin Plated
Product UPC
07498390140
Weight
1.5500 lb

Dimensions

Outer Diameter
0.71 in
Overall Length
3.22 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico

Certifications & Compliance

Prop 65 Warning
No
Standards and Certifications
  • Standards Met: C22.2 No. 65-13, 486A-486B File #E52164, ABS approved, NEBS Level 3
Prop 65
  • No
