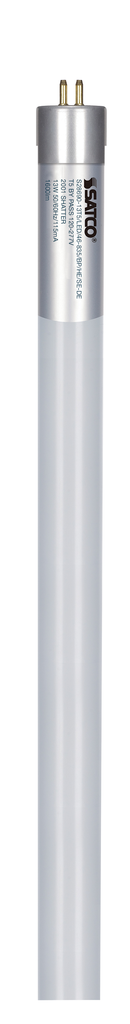

Product image for Satco S28690 13 Watt T5 LED; Miniature bi-pin base; 3500K; 50000 Average rated hours; 1600 Lumens; 120-277 Volt; Type B; Ballast Bypass; Single or Double Ended Wiring
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Satco S28690 13 Watt T5 LED; Miniature bi-pin base; 3500K; 50000 Average rated hours; 1600 Lumens; 120-277 Volt; Type B; Ballast Bypass; Single or Double Ended Wiring

Manufacturer: SATCO Lighting | Catalog # S28690 | Codale Part # 4310337
$20.24/ea
ea
Log in or register to view your price, purchase history, and more!
41 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
13W T5 LED; Miniature bi-pin base; 3500K; 50000 Average rated hours; 1600 Lumens; 120-277V; Type B; Ballast Bypass; Single Ended Wiring

Technical Information

Amperage
0.108-0.047 Amp
Average Rated Life
50000 hr
Base
Miniature Bi Pin
Beam Spread
240
Bulb Shape
T5
Color Accuracy
83
Color Rendering Index
83
Color Temperature
Neutral White
Correlated Color Temp
3500 K
Dimmable?
No
Incandescent Equivalent
50 W
IP Rating
IP20
Lens Color
Frost
Lens Material
Glass
Lumens
1,600 Lumen
Material
Glass
Operating Temperature
-13 degrees F
Power Factor
0.9
Technology Type
LED
Type
Linear
Voltage
120 Volt
Wattage
13 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco

General Product Info

12-Digit UPC
045923286902
Finish
Frosted
Housing Color
White
Product UPC
04592328690
Weight
0.37 lb

Dimensions

Length
48 Inch
Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Features
  • Single or double ended wiring
  • All glass tube
  • PET-shatterproof coated
  • NSF certified
  • Damp location rating
  • 50/60 hertz electric power frequency
Ballasting Requirements
  • Ballast Bypass
Installation Notes
  • Not for use in vapor tight fixtures.
Replaced By Products
  • S8690
