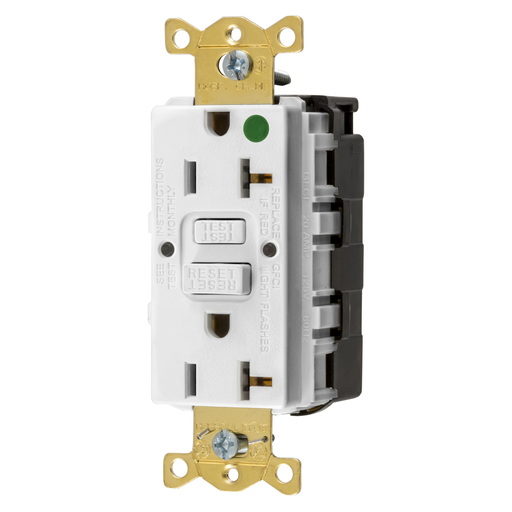

Hubbell GFRST83SNAPW20A COMM HG SELF TEST SNAP GFR WHITE

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # GFRST83SNAPW | Codale Part # 4312412
$103.56/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Straight Blade Devices, Receptacle, GFCI, SnapConnect, Commercial Hospital Grade, Self Test, 20A 125V, 2-Pole 3- Wire Grounding, 5-20R, White.

Technical Information

Amperage
20 Amp
Applications
Commercial Hospital Grade
Conductor Size
14-12 AWG
Current
20 Amp
Grade
Commercial Hospital
Grounding
Self
Horsepower
1 hp
Material
Nylon
Mounting Type
Screw
NEMA
5-20R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
3.28 in x 1.77 in x 1.47 in
Standard
NEC®
Style
Standard
Tc Connection
Connectorized
Type
Decorator, Self-Test, Tamper-Resistant
Voltage
125 Volt
Wattage
2500 Watt
Wire Size
12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
SnapConnect®

General Product Info

12-Digit UPC
783585486376
Color
White
Environmental Conditions
Weather-Resistant
Product Series
Hospital Grade
Product UPC
78358548637

Dimensions

Height
1.47 Inch
Length
3.28 Inch
Width
1.77 in

Certifications and Compliance

Country of Origin
China
Features
  • Audible SNAP indicates solid connection
  • SNAPConnect, Style Line, AUTOGUARD, Self test GFCI receptacle
  • Patented shutter design for tamper-resistant
  • Compliant with NEC® 406.12 and NEC® 517-18(c)
  • Patented AUTOGUARD® self test technology
  • Triple wipe construction
