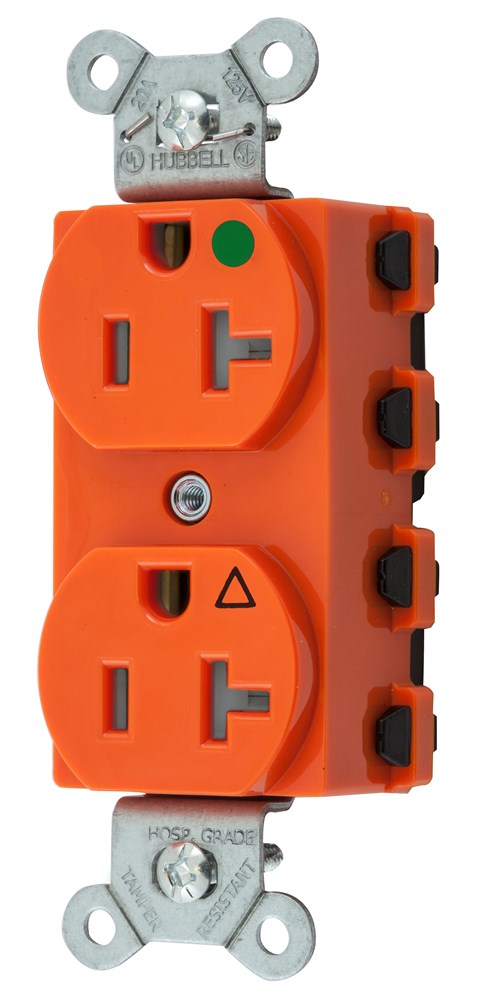

Product image for Hubbell SNAP8300IGTRA Snap2Connect® DUP HG 20A/125V IG TR OR
Image thumbnail 0

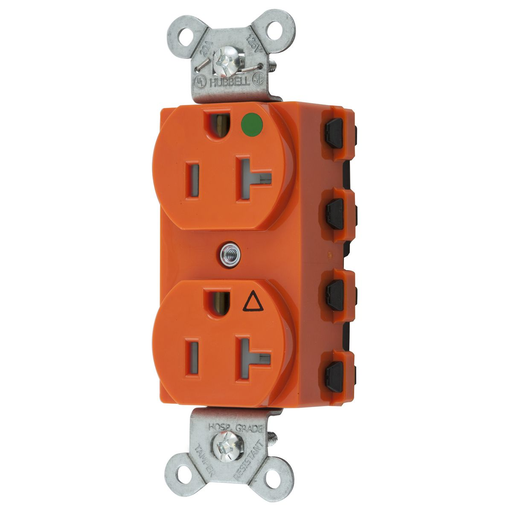

Image thumbnail 1
Image thumbnail 2
Email

Hubbell SNAP8300IGTRA Snap2Connect® DUP HG 20A/125V IG TR OR

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # SNAP8300IGTRA | Codale Part # 4313378
$54.14/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page
Straight Blade Devices, Receptacles, Duplex, SNAPConnect, Hospital Grade, Isolated Ground, Tamper Resistant, 20A 125V, 2-Pole 3-Wire Grounding, 5-20R, Nylon, Orange

Technical Information

Amperage
20 Amp
Applications
Hospital Grade
Conductor Size
12 AWG
Current
20 Amp
Dielectric Strength
Withstands 2,000V minimum
Enclosure Material
Stainless Steel
Horsepower
1 hp
Material
Nylon
NEMA
5-20R
Number of Conductors
3
Number of Phases
1 Phase
Number of Poles
2-2 Pole
Number of Wires
3,3
Operating Temperature
-40 degrees C
Size
3.28 in x 1.64 in x 1.1 in
Standard
C22.2,CSA,Fed. Spec. W-C-596,NEMA® WD-6,No. 42 File 285,UL,UL498 File No. E2186
Style
Smooth Face
Type
Non-Reversing
Voltage
125 Volt
Wattage
2500 Watt
Wire Size
12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems

General Product Info

12-Digit UPC
783585553504
Color
Orange
Environmental Conditions
Indoor Dry Unless Protected By Additional Means
Product Series
Hospital Grade
Product UPC
78358555350
Weight
0.2 lb

Dimensions

Height
1.1 Inch
Length
3.28 Inch
Width
1.64 in

Certifications and Compliance

Country of Origin
Mexico
Features
  • Audible SNAP, indicates solid connection
  • Reduces installation time
  • Isolated Ground, Tamper-Resistant
  • Isolated Ground and Tamper Resistant
