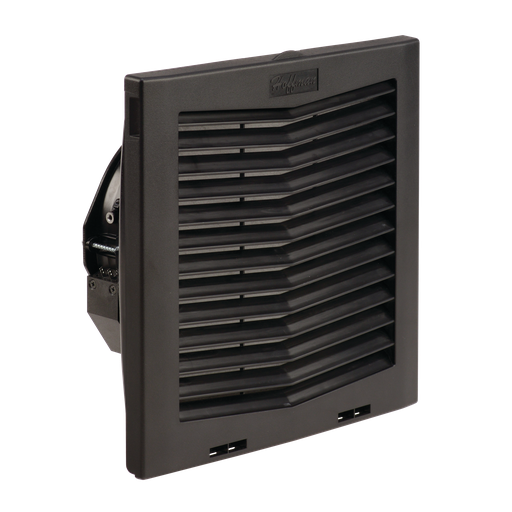

Product image for Hoffman HF1024413 HF10 Side-Mount Filter Fan, 24V, 159 CFM, Black
Image thumbnail 0
Image thumbnail 1
Email

Hoffman HF1024413 HF10 Side-Mount Filter Fan, 24V, 159 CFM, Black

Manufacturer: nVent Hoffman | Catalog # HF1024413 | Codale Part # 4314517
$701.26/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
HF Side-Mount Filter Fans quickly install into enclosure with a click-fit design; no tools or screws required. Grilles open with the flick of a finger for easy filter replacement.

Technical Information

Airflow Rate
159
Amperage
0.88 Amp
Applications
Controls and Drives; Power Distribution
Color Coding
RAL 9011
Material
Plastic
Max Current
0.88 A
Max Temperature
131 degrees F
Min Temperature
14 degrees F
Size
10.13 x 10.14 x 5.18 in
Type
Open-Loop Cooling
Voltage
24

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510342883
Color
Black
Finish
Black
Housing Material
Non-metallic
Product UPC
78351034288
Weight
4.2 lb

Dimensions

Depth
5.18 Inch
Height
10.13 Inch
Length
12.3 Inch
Width
10.14 in
DISK UNSPSC
40101604
Features
  • Click-Fit design quickly installs into enclosure wall; no tools or screws required
  • Opens with the flick of a finger for easy filter replacement
  • Enclosure side wall mounting
  • Reverse airflow option on HF13 models available to push/pull air through higher static pressure
  • Standard rope gasket provides proper seal to the enclosure
  • Similar cut-out sizes as other filter fan manufacturers
  • Terminal block connections
  • Optional thermostat available to save energy and extend service life
  • Hinged grille remains attached after opening
  • Size rage from 4 inch (102 mm) to 13 inch (325 mm)
  • Free air flow from 21 CFM (36 m3/hr.) to 484 CFM (822 m3/hr.)
  • Service life hours from 40,000 to 100,000 hours
  • Operating temperature range of -4 F/-20 C to 149 F/65 C
