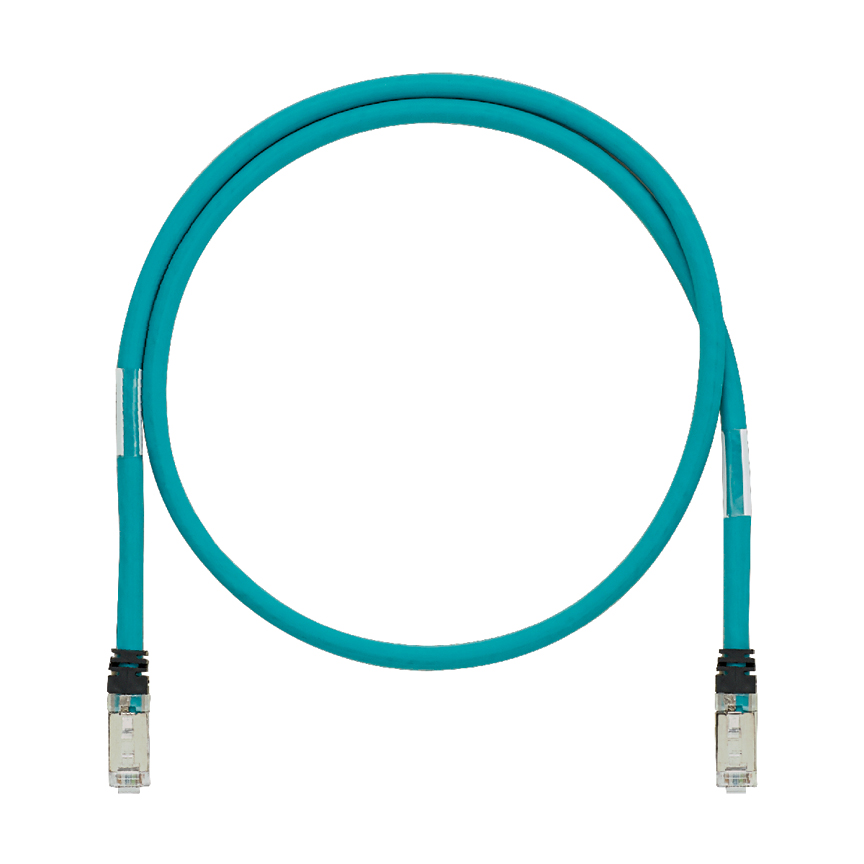

Product image for Panduit ISTPH6X10MTL Industrial Cat 6A, Shielded 600V, Patch Cord, 10m, Teal
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

Panduit ISTPH6X10MTL Industrial Cat 6A, Shielded 600V, Patch Cord, 10m, Teal

Manufacturer: Panduit | Catalog # ISTPH6X10MTL | Codale Part # 4314576
$323.88/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet
The IndustrialNet™ Cat 6A Shielded Patch Cord is constructed of industrial grade, 26 AWG, SF/UTP, twisted pair, stranded, CMR cable with industrial bulkhead modular plugs with black strain relief boots. It is designed to support high-flex applications and is rated for 600 V panel or on-machine applications where space is shared with high voltage power cables. The patch cord is 10 meters in length and teal.

Technical Information

Boot Color
Black
Conductor Size
26 AWG
Conductor Type
Stranded
IP Rating
IP20
Max Operating Temperature
60 degrees C
Min Operating Temperature
-10 degrees C
Performance Level
Category 6A
Type
Industrial Copper Patch Cord

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
IndustrialNet™

General Product Info

12-Digit UPC
613056572010
Color
Teal
Jacket Material
Thermoplastic Elastomer
Product UPC
61305657201

Dimensions

Outer Diameter
7.4 mm
Overall Length
10 m

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Costa Rica
Standards and Certifications
  • Standards Met: Exceeds channel and component requirements of ANSI/TIA-568-C.2 Category 6A and ISO 11801 Class Ea standards; Meets all applicable ANSI/TIA-968-A requirements; Meets IEC 60603-7 UL-rated: UL 1863 approved; Meets IEEE 802.3af and IEEE 802.3at for PoE+ applications; UL AWM Style 2463 (80°C 600V) Flex Life Test; RoHS Compliant
