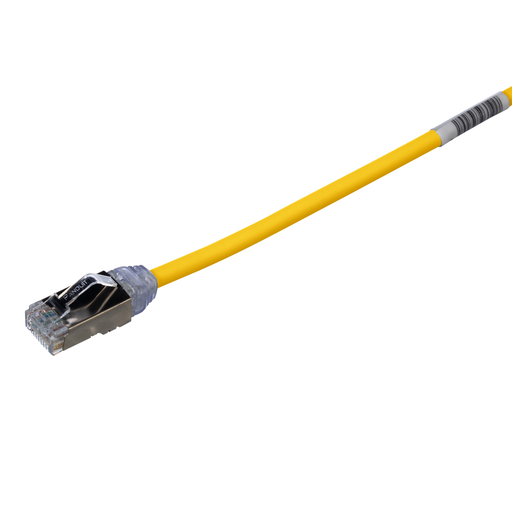

Panduit STP28X1.5MYL Cat 6A 28 AWG Shielded Patch Cord, 1.5 m, Yellow

Manufacturer: PANDUIT | Catalog # STP28X1.5MYL | Codale Part # 4314934
$74.58/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Installation / Instruction Manual
Category 6A Performance, 28AWG, F/UTP Patch Cord, CM/LSZH, Yellow, 15m.

Technical Information

Applications
(1)10GBASE-T Ethernet(2)Data center I/O Consolidation(3) Data center server virtualization(4)Backbone aggregation(5)Parallel processing and high speed computing
Boot Color
Clear
Cable Type
28 AWG F/UTP
Conductor Material
Copper
Conductor Size
28 AWG
Conductor Type
Solid
Connector Type
Modular Plug
Max Operating Temperature
60 degrees C
Min Operating Temperature
-10 degrees C
Performance Level
Category 6A
Plug Type
Modular Plug
Standard
CSA,NOM,UL
Temperature Rating
14 - 167 degrees F
Type
Category 6A, Shielded
Wire Size
28 AWG

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
PanNet

General Product Info

12-Digit UPC
074983027620
Color
Yellow
Jacket Material
LSZH Material
Product UPC
07498300329
UNSPSC
43223303
Weight
0.1200 lb

Dimensions

Cable Length
1.5 m
Length
49.22 Inch
Outer Diameter
4.7 mm
Outside Diameter
4.7 mm
Overall Length
1.5 m

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
China,Mexico,Romania
Standards and Certifications
  • Standards Met: Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all frequencies from 1 to 500 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; RoHS Compliant; wired to be compatible with both T568A and T568B wiring schemes.
