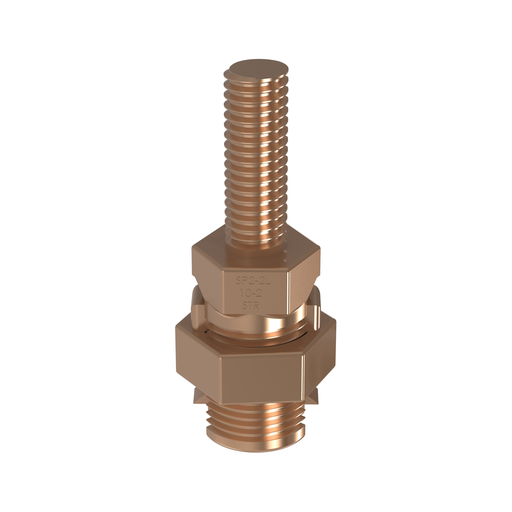

Product image for Panduit SP2-2L-C Ground Connector-Service Post, Male Stud, Two-Conductors, 2L
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4

Email

Panduit SP2-2L-C Ground Connector-Service Post, Male Stud, Two-Conductors, 2L

Manufacturer: Panduit | Catalog # SP2-2L-C | Codale Part # 4315609

$10,872.03/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
The SP2-2L-C Service Post Grounding Lug is designed for grounding two copper code conductors to steel structures, busbars, transformers. The true hex design for body and nut hex provides correct fit with socket, box, or open-end wrenches, resulting in proper torquing of electrical connection. The pressure bar provides a secure connection on a full range of conductor combinations used with each Lug providing a premium wire pull-out strength. UL Listed for grounding and bonding.

Technical Information

Applications
Utility/Ground Grid
Material
Copper
Tc Connection
Connecting Conductors to Various Sizes of Tapped Hole
Type
Grounding Connector

Packaging

Pkg Qty
100

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
StructuredGround™

General Product Info

12-Digit UPC
074983716661
Product UPC
07498371666
Weight
19.0000 lb

Dimensions

Height
1.28 Inch
Overall Length
1.28 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
Standards and Certifications
  • Standards Met: cULus Listed - 467, DB Rated
