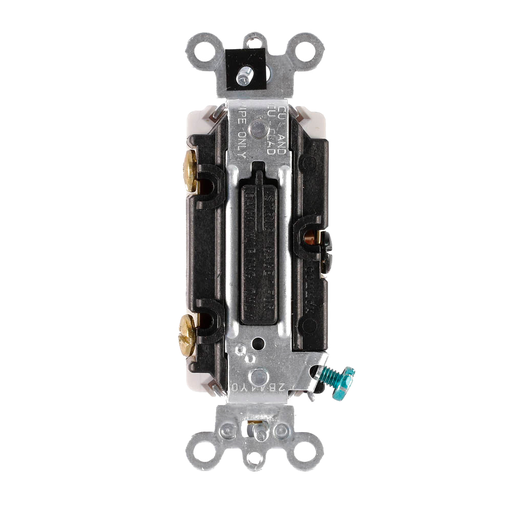

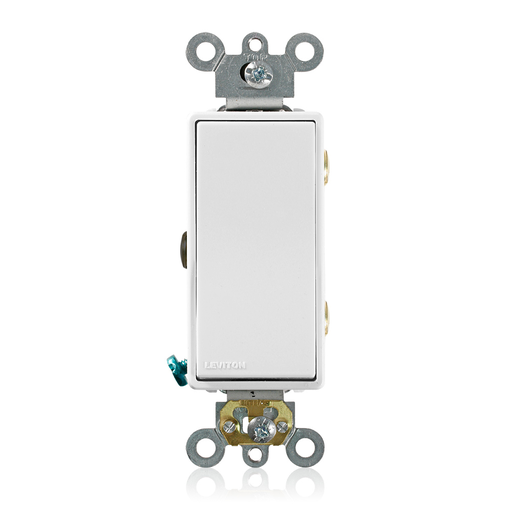

Product image for Leviton 5623-2W 120/277 VAC 20 Amp 2 Hp 3-Way White Thermoplastic Self Grounding Rocker Quiet Switch
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Email

Leviton 5623-2W 120/277 VAC 20 Amp 2 Hp 3-Way White Thermoplastic Self Grounding Rocker Quiet Switch

Manufacturer: Leviton | Catalog # 5623-2W | Codale Part # 43183
$30.82/ea
ea
Log in or register to view your price, purchase history, and more!
221 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
20 Amp, 120/277 Volt, Decora Plus Rocker 3-Way AC Quiet Switch, Commercial Spec Grade, Self Grounding, Back & Side Wired, - White

Technical Information

Actuator
Rocker
Amperage
16 Amp
Applications
For Commercial use
Body Material
Thermoplastic
Connection Type
Back Wired,Side Wired
Contact Rating
120/277 VAC, 20 A
Device Type
Rocker Switch
Dielectric
1500 V
Enclosure
WD-6
Flamability Class
Rated V-2 Per UL 94
Grade
Commercial Specification
Grounding
Self-Grounding
Horsepower
1 hp
Material
Thermoplastic
Max Current
16 A
Mounting Type
Box
NEMA
WD-1
Number of Poles
3 Pole
Operating Temperature
-40 degrees C
Size
46 H x 1.76 W x 1.60 D IN
Standard
ANSI C-73
Tc Connection
Back and Side Wire
Temperature Rating
-40 to 120 degrees C
Temperature Rise
30 degrees C
Terminal Type
Screw
Termination Type
Back Wire,Side Wire
Torque
12 lb-in
Type
3 Way
Voltage
120/277 Volt

Manufacturer Information

Brand
Leviton
Sub Brand
Decora Plus™

General Product Info

12-Digit UPC
078477519288
Color
White
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
Product UPC
07847751928
Weight
0.1950 lb

Dimensions

Warranty Length
10 yr

Certifications and Compliance

Country of Origin
Mexico
Features
  • Decora® brand Plus devices combine designer styling with all the benefits of rugged Commercial Grade construction. The robust product offering includes: single pole, double pole, 3 and 4-way switches, momentary and maintained contact switches, as well as pilot light and illuminated switches.
