HWDK DRUBKITAC DIN RAIL BOX, KIT ON

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # DRUBKITAC | Codale Part # 4318841
$112.75/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
DIN Rail Utility Box, Kit Only, Gray with Aux Contact.

Technical Information

Amperage
15 Amp
Applications
Pre-Wired Kit with Aux
Cable Entry
Terminals
Conductor Size
14-12 AWG
Current
15 Amp
Horsepower
0.5 hp
Material
PVC
Mounting Type
DIN Rail/Vertical
NEMA
5-15R
Number of Outlets
1
Number of Poles
2 Pole
Number of Wires
3 Wire
Size
Standard Sized Product
Standard
UL
Type
Component Parts
Voltage
125 Volt
Wire Count
3
Wire Size
14-12 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
DIN Rail Utility Box

General Product Info

12-Digit UPC
783585108193
Color
Gray
Construction
Molded And Fabricated
Product UPC
78358510819
Weight
0.7 lb

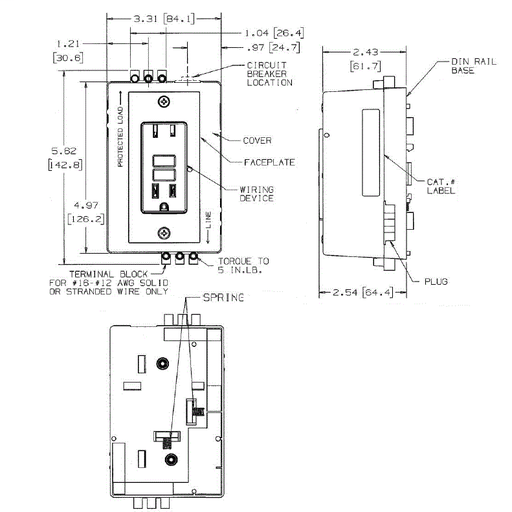

Dimensions

Height
2.54 Inch
Length
5.62 Inch
Width
3.31 in

Certifications and Compliance

Country of Origin
USA
Features
  • It provides utility power to any control cabinet
  • Optional auxiliary contacts for feed through capability
  • Pre-wired \"kits\" are available for end-user customization
  • No Devices
