PHIL 535567 15.5T8-6U/COR/24-850/MF

Manufacturer: Signify Lamps | Catalog # 535567 | Codale Part # 4319535
$48.31/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Installation / Instruction Manual
Our TLEDs are available in InstantFit (Type A / Type C) or MainsFit (Ballast bypass / Type B) versions. The InstantFit lamps work on a broad variety of ballasts and LED drivers. Only InstantFit has over 15,000 lamp & ballast combinations delivering even light output, energy savings and a long lifetime. Our MainsFit products feature a double-ended design, simplifying installation while a proprietary safety circuit minimizes a shock risk. Lamp sizes range from 2-foot to 8-foot and U-bend with a variety of lumen outputs.

Technical Information

Average Rated Life
50000 hr
Base
2G13
Beam Angle
180 degrees
Color Accuracy
82
Color Coding
850
Color Rendering Index
82
Color Temperature
Daylight
Correlated Color Temp
5,000 K
Dimmable?
No
Frequency
50/60 Hz
Lumens
2,100 Lumen
Power Factor
0.9
Power Rating
15.5 W
Voltage
120 Volt

Manufacturer Information

Brand
Philips Lighting

General Product Info

12-Digit UPC
046677535568
Product UPC
04667753556
Weight
0.230 kg

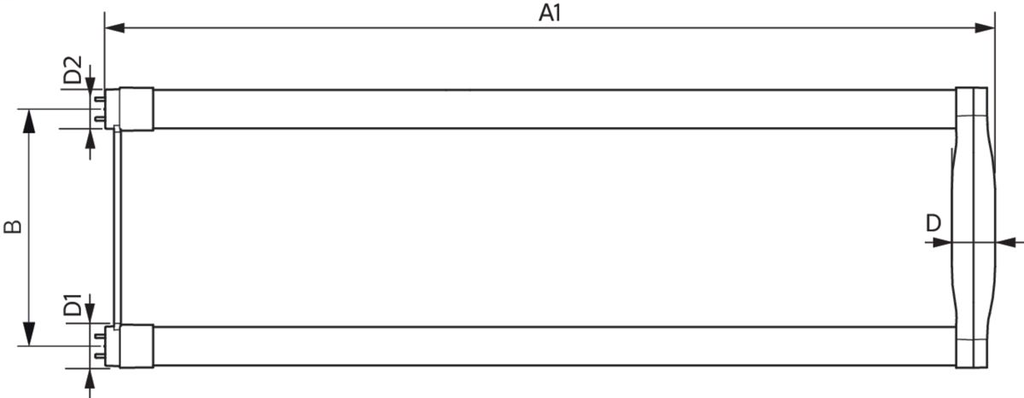

Dimensions

Length
24 Inch
Features
  • InstantFit works with over 350 ballasts and drivers
  • Lifetime of up to 70,000 hours & a limited warranty of up to 7-years
  • Plug-and-play, ballast bypass or UL Type C options available
  • Shatter-resistant, polycarbonate tubes avialable
  • All T8 replacement TLEDs are NSF certified and most are DLC certified
  • Most lamps are DLC 5.0. See individual specs for details
Benefits
  • Minimizes overall lighting costs
  • Offers cheapest and easiest upgrade to LED lighting technology
  • Excellent compatibility with existing ballasts
Applications
  • Office and Shopping
  • Industrial and warehouses
  • Parking lots and covered car parks
