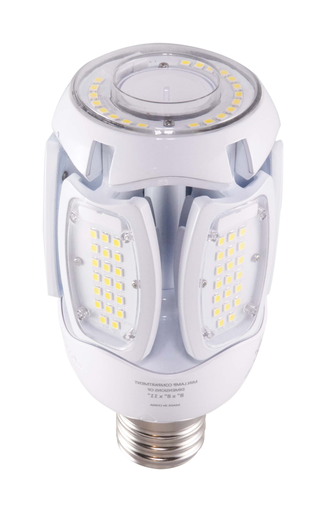

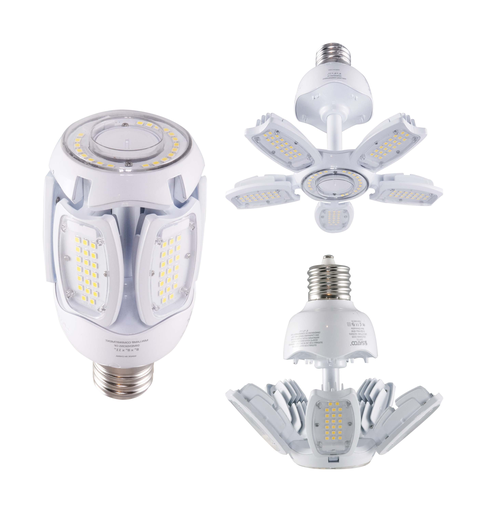

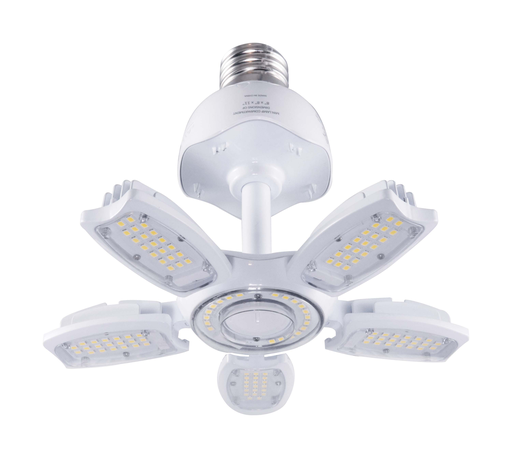

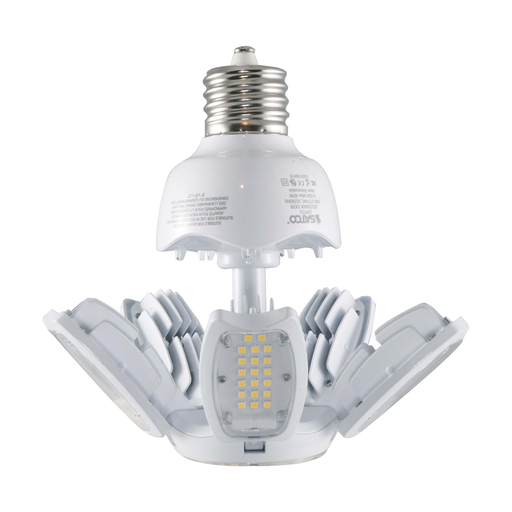

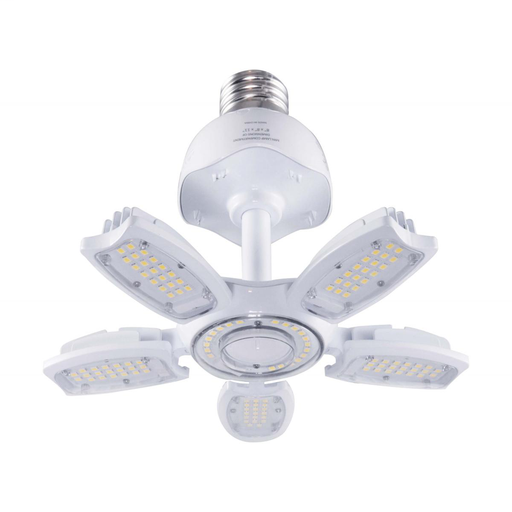

Product image for Satco S39751 40 Watt LED HID Replacement; 5000K; Mogul extended base; Adjustable Beam Angle; Type B Ballast Bypass;100-277 Volt
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Image thumbnail 3
Image thumbnail 4
Image thumbnail 5
Image thumbnail 6
Image thumbnail 7
Image thumbnail 8
Image thumbnail 9
Email

Satco S39751 40 Watt LED HID Replacement; 5000K; Mogul extended base; Adjustable Beam Angle; Type B Ballast Bypass;100-277 Volt

Manufacturer: SATCO Lighting | Catalog # S39751 | Codale Part # 4320169
$137.45/ea
ea
Log in or register to view your price, purchase history, and more!
13 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
40 Watt LED HID Replacement - 5000K - Mogul Extended Base - Adjustable Beam Angle - 100-277 Volts

Technical Information

Amperage
0.400-0.144 Amp
Average Rated Life
50000 hr
Beam Spread
120/150/260
Color Temperature
Natural Light
Correlated Color Temp
5000 K
Dimmable?
No
Incandescent Equivalent
300 W
Indoor Outdoor
Indoor;Outdoor
IP Rating
IP64
Lens Color
Clear
Lens Material
Thermo Plastic
Lumens
5,600 Lumen
Material
Aluminum,Steel,Thermo Plastic
Operating Temperature
-20 degrees C
Power Factor
0.9
Technology Type
LED
Type
LED HID
Voltage
100 Volt
Wattage
40 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Satco

General Product Info

12-Digit UPC
045923397516
Finish
Clear
Housing Color
White
Product UPC
04592339751
Weight
1.85 lb

Dimensions

Warranty Length
5 yr

Certifications and Compliance

Country of Origin
China
Installation Notes
  • Not for use in vapor tight fixtures.
Features
  • Greater Efficiency
  • Improved Heat Dissipation
  • Built-In 4kv Surge Protection
  • Multiple Beam Angle Options
  • Port For Motion Sensor
  • L:7.24 D:3.35
  • PIR Sensor available as an accessory
Ballasting Requirements
  • Ballast Bypass
Replaced By Products
  • S29751
  • S9751
