Satco S39769 75 Watt LED HID Replacement; 5000K; Mogul Extended base; Adjustable Beam Angle; Type B Ballast Bypass;100-277 Volt

Manufacturer: SATCO Lighting | Catalog # S39769 | Codale Part # 4320179
$223.87/ea
ea
Log in or register to view your price, purchase history, and more!
14 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet

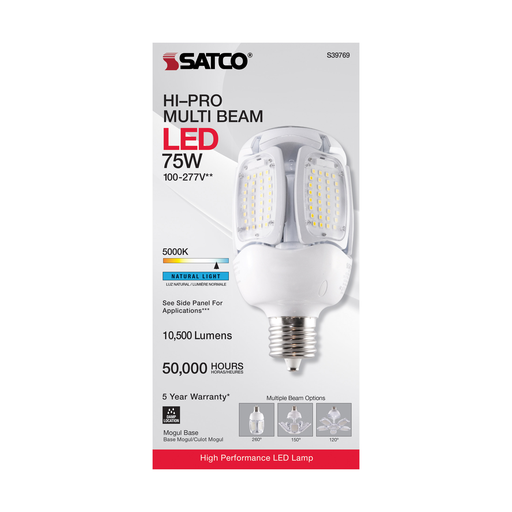

75 Watt LED HID Replacement - 5000K - Mogul Extended Base - Adjustable Beam Angle - 100-277 Volts

Technical Information

Amperage
0.750-0.271 Amp
Applications
For Enclosed Fixture and Damp Locations
Average Rated Life
50000 hr

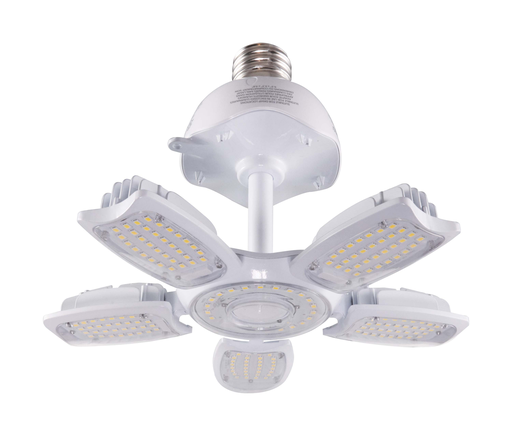

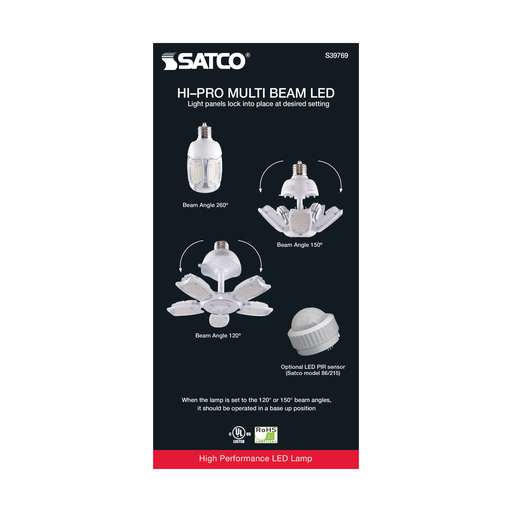

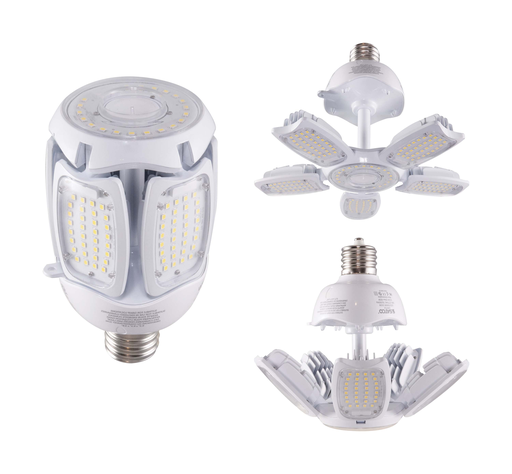

Beam Angle
120, 150, 260
Beam Spread
120/150/260
Color Accuracy
80
Color Rendering Index
80
Color Temperature
5000 K
Correlated Color Temp
5,000 K
Dimmable?
No
Incandescent Equivalent
750 W
Indoor Outdoor
Indoor;Outdoor
IP Rating
IP64
Lens Color
Clear
Lens Material
Thermo Plastic
Lumens
10,500 Lumen
Material
Aluminum,Steel,Thermo Plastic
Operating Temperature
-20 degrees C
Power Factor
0.9
Technology Type
LED
Temperature Rating
-20 to 65 degrees C
Type
Non-Dimmable
Voltage
100 Volt
Wattage
75 Watt
Wet Location
Damp

Packaging

Pkg Qty
1

Manufacturer Information

Brand
NUVO Lighting

General Product Info

12-Digit UPC
045923397691
Environmental Conditions
Damp Location Rated
Finish
Clear
Housing Color
White
Product UPC
04592339769
Weight
2.4 lb

Dimensions

Diameter
4.13 Inch
Height
11.9 Inch
Warranty Length
5 yr
Width
17.3 in

Certifications and Compliance

Country of Origin
China

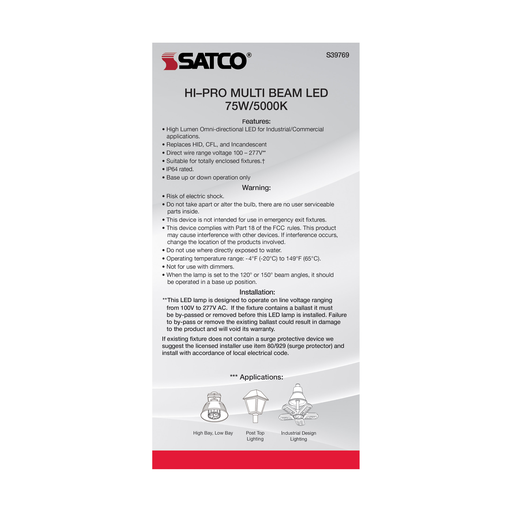

Installation Notes
  • Not for use in vapor tight fixtures.
Features
  • Natural light
  • LED
  • Damp rated for indoor and outdoor use
  • L:8.46 D:4.13
  • Corncob, Clear
  • PIR Sensor available as an accessory
Ballasting Requirements
  • Ballast Bypass
Replaced By Products
  • S29769
  • S9769
