PHIL 467324 C70S62/ALTO NC HPS 1/12

Manufacturer: Signify Lamps | Catalog # 467324 | Codale Part # 4320586
$82.70/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Installation / Instruction Manual
Philips Ceramalux High Pressure Sodium Non-Cycling Lamps are a better value than standard high pressure sodium lamps, with longer life and reduced maintenance cost.

Technical Information

Amperage
1.45 Amp
Applications
Street Lighting
Base
E39
Bulb Shape
ED23 1/2
Color Accuracy
21
Color Rendering Index
21
Color Temperature
2150 K
Correlated Color Temp
2,150 K
Efficacy
79 LPW
Lumens
5,500 - 6,300 Lumen Nominal, 5,670 Lumen Mean
Material
Glass
Max Voltage
60 V
Power Rating
70.2 W
Temperature Rating
400 degrees C Bulb, 210 degrees C Cap Base
Type
Non-Cycling
Voltage
52 Volt
Wattage
70.2 Watt

Manufacturer Information

Brand
Philips Lighting
Sub Brand
Ceramalux ALTO

General Product Info

12-Digit UPC
046677467326
Finish
Clear
Product UPC
04667746732
Weight
126.000 g

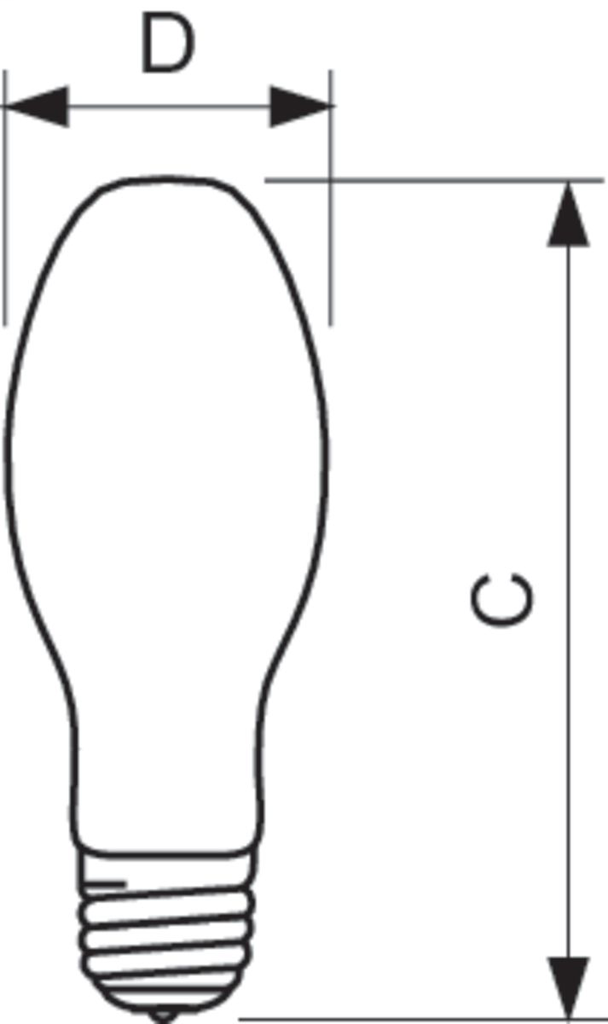

Dimensions

Diameter
2.94 Inch
Features
  • Rated average life of 30,000 hours*
  • Direct replacement for standard HPS lamps
  • 200, 250 and 400 Watts available in the ED18 mogul base / 50, 70, 100 and 150 Watts available in the ED 23-1/2 mogul base / 1000 Watts available in the ED 25 mogul base.
  • Rated average life is the life obtained, on the average, from large representative groups of lamps in laboratory tests under controlled conditions at 10 or more operating hours per start. Approximate lumen output at 40% of rated life. It is based on survival of 65% of the lamps and allows for individual lamps or groups of lamps to vary considerably from the average.
Applications
  • Ideal for street and roadway lighting, parking lots and garages, warehouses and manufacturing facilities where lower maintenance costs are desired.
Benefits
  • More resistant to outages caused by vibration and line voltage fluctuations.
  • 90% lumen maintenance.
  • Sustainable lighting solution - up to 90% less mercury than standard Philips Ceramalux HPS lamps and lead free.
Warning And Safety
  • Lamp contains mercury. Manage in Accord with Disposal Laws. See: www.lamprecycle.org or 1-800-555-0050
