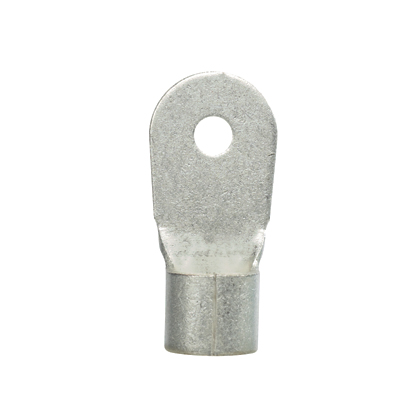

Panduit P6-56RHT6-E 6 AWG 5/16 Inch High Temperature Non-Insulated Ring Terminal

Manufacturer: PANDUIT | Catalog # P6-56RHT6-E | Codale Part # 4321643
$268.14/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page
High Temperature Ring Terminal, 6 AWG, 5/16" stud size, non-insulated.

Technical Information

Barrel Length
13 mm
Barrel Type
High Temperature, Brazed Seam
Color Coding
Metallic
Conductor Size
6 AWG
Enclosure
Ring shape
Material
Copper
Max Operating Temperature
343 degrees C
Size
5/16"
Tc Connection
Standard
Temperature Rating
650 F
Tongue Thickness
0.05 in
Tongue Width
0.62 in
Type
Ring Terminal
Voltage
2,000 Volt
Wire Size
6 AWG

Packaging

Pkg Qty
20

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Pan-Term®

General Product Info

12-Digit UPC
074983131273
Color
NA
Finish
Plated
Product UPC
07498313127
UNSPSC
39121409
Weight
0.2550 lb

Dimensions

Outer Diameter
0.32 in
Overall Length
1.33 in
Width
0.62 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: cULus Listed 587H E52164
