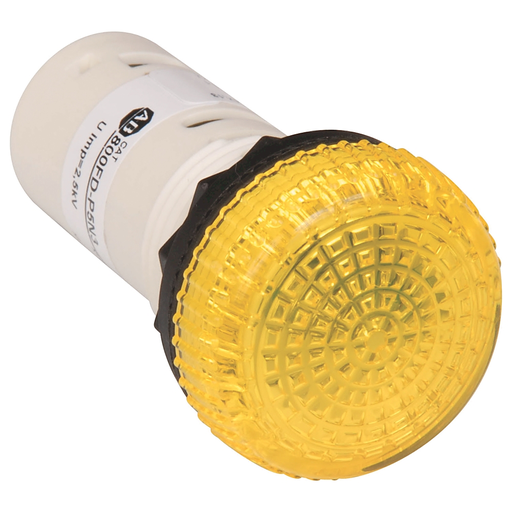

Allen Bradley 800FD-P5D5 22 mm Pilot Light

Manufacturer: Allen Bradley / Rockwell | Catalog # 800FD-P5D5 | Codale Part # 4322808
$44.17/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
22mm Pilot Light 800F PB

Technical Information

Connection Type
No Contact Blocks/ Latch Only
Contact Configuration
None
Enclosure Rating
4, 13, IP66
Enclosure Type
IP66, NEMA 4, 13
Lamp Type
Incandescent
Lens Color
Yellow
Lens Material
Monolithic
Lens Type
Round
Material
Monolithic
Standard
CCC,CE,CSA,CUL,KC,UL
Tc Connection
No Contact Blocks/ Latch Only
Type
22mm Pilot Light
Voltage
120 Volt

Manufacturer Information

Brand
Allen-Bradley
Sub Brand
800F PB

General Product Info

12-Digit UPC
662074317042
Color
Yellow
Product UPC
66207431704
Weight
0.0500 lb
Features
  • Finger-safe contact blocks
  • Buttons are flush-mounted with the enclosure to reduce accidental operation
  • Panel mount sounder
  • Compatible with Bulletin 800F accessories and enclosures
  • Key selector switches
  • Illuminated or non-illuminated
  • Twist-to-release or key release
  • Plastic or aluminum
  • Multi-operators
  • Electrical and mechanical interlocks
  • Made of industrial-grade thermoplastic for superior chemical resistance
  • Mushroom or half-dome
  • Selector or toggle switch
  • Low back-of-panel profile (45.7 mm)
  • 2-, 3-, and 4-position
  • Flush or extended 2-color molded legend caps
  • 22.5 mm mounting hole
  • Pilot light operators
  • Aesthetic design complements the Bulletin 800F modular line
  • 800FP plastic operators
  • Single turn potentiometer
  • Maintained or spring return
  • Reset push button
  • Uses standard Bulletin 800F extended push buttons
  • 30 and 40 mm
  • Ring lug capability
  • 800FM metal operators
  • Momentary or alternate action
  • IP66, NEMA Type 4/4X/13
  • Anti-rotation tab provides accurate alignment and can be easily removed for use in panels without notches
