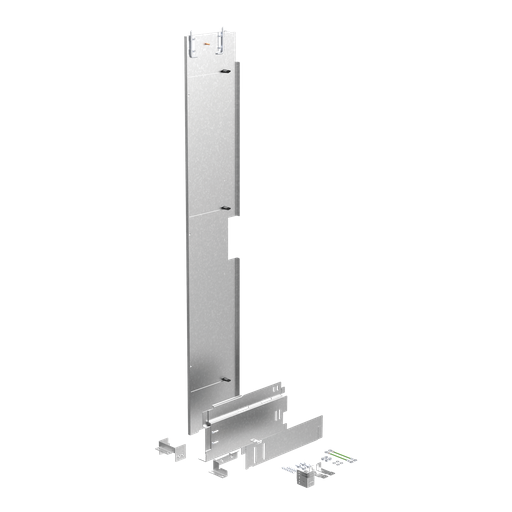

Product image for NVENT HOF A60BP18G Barrier Panel 60
Image thumbnail 0
Image thumbnail 1
Email

NVENT HOF A60BP18G Barrier Panel 60

Manufacturer: nVent Hoffman | Catalog # A60BP18G | Codale Part # 4323614
$1,185.65/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
The universal barrier panel provides a Type 1 solution to help reduce the risk of electrical hazards such as electrical shock or arc flash by adding a physical barrier inside an enclosure to separate the high voltage from the low voltage components. Designed to fit in unibody free-stand or floor-mount enclosures with centerpost, the barrier helps minimize the incidental contact or exposure to high voltage components while accessing the low voltage equipment such as controls and programming devices.

Technical Information

Applications
Controls and Drives; Power Distribution
Cable Entry
No
Material
Steel
Size
59.80 x 15.19 x 2.60 inch
Type
Industrial Panels and Panel Accessories

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510384081
Color
Galvanized Unpainted
Finish
Galvanized
Product UPC
78351038408
Weight
26.6 lb

Dimensions

Height
3 Inch
Length
54 Inch
Thickness
1.9 mm
Width
12.25 in
Features
  • Meet UL Type 1 construction requirements when installed in an nVent HOFFMAN enclosure
  • Top and bottom barrier plates included to provide a full-depth separation
  • Main barrier plate has a 6-inch extender to add flexibility when mounting
  • Quick release hinges used to secure the main barrier plate to the top barrier plate to simplify installation
  • Ground stud on the main barrier plate
  • Designed to fit the following bulletins: A21 (excluding CPX enclosures), A28M2, A28MM, A4L3D, A4L3, A4L, A21S4 (excluding CPX enclosures), A28S4, A4S2, A4S3, A4SL
  • Mount to the welded or removable centerpost of an enclosure; the barrier panel cannot be installed in free-stand or floor-mount enclosures without a centerpost
  • Mounting hardware and brackets included
