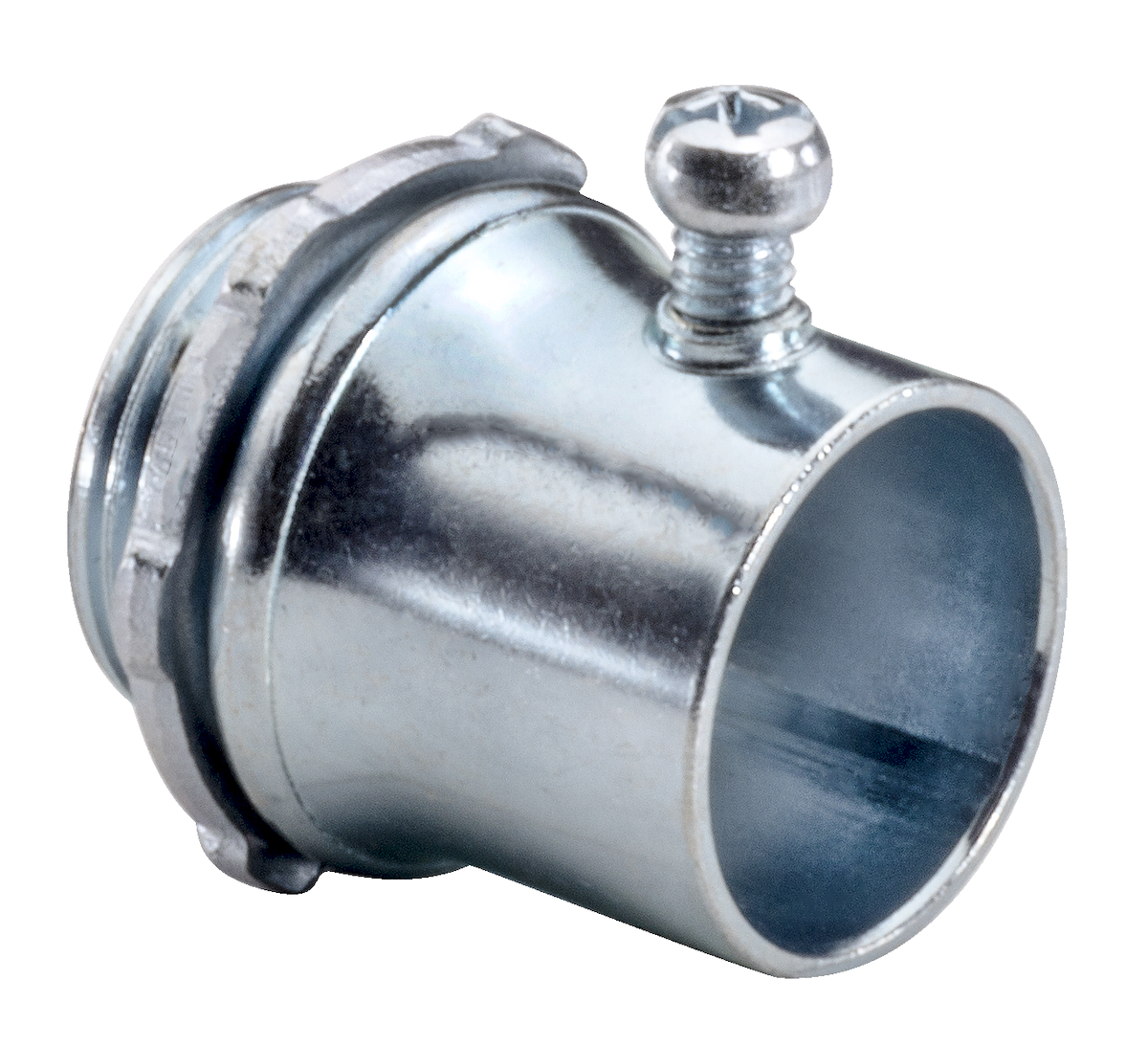

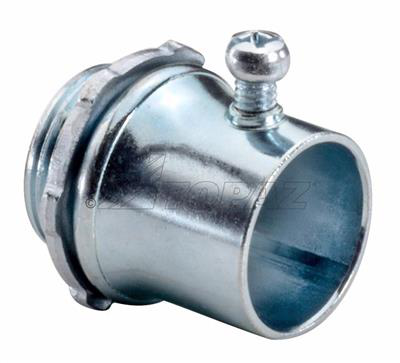

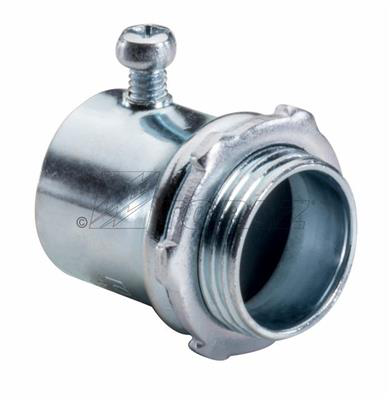

Topaz Corp 632S 3/4 Inch Steel Set Screw EMT Connector

Manufacturer: Topaz Electrical Fittings | Catalog # 632S | Codale Part # 4323766
$0.51/ea
ea
Log in or register to view your price, purchase history, and more!
1,491 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet
Topaz EMT connectors with set screw type assembly provide secure concrete tight protection when taped and are available in sizes from 1/2. to 4.. Applications include use in dry locations to bond EMT thin wall conduits to electrical boxes or enclosures. Model sizes 2- 1/2. to 4. are suitable for both EMT and rigid conduit. Assemblies include steel locknut; constructed of strong and long lasting steel with zinc plated finish; most sizes UL listed. NEMA/ANSI FB-1 compliant.

Technical Information

Applications
For EMT Conduit
Material
Steel
Size
3/4 in
Tc Connection
Threaded x Set Screw
Thread Length
0.438 IN
Type
Set Screw EMT Connector

Manufacturer Information

Brand
Topaz Lighting and Electric

General Product Info

12-Digit UPC
751338230101
Finish
Zinc
Product UPC
75133823010
Used With
Join EMT To Box or Enclosure
Weight
0.1030 lb

Dimensions

Diameter
1.313 Inch
Length
1.531 Inch
Features
  • CONCRETE TIGHT WHEN TAPED
  • STEEL-ZINC PLATED
  • EMT CONNECTORS
  • SET SCREW TYPE
