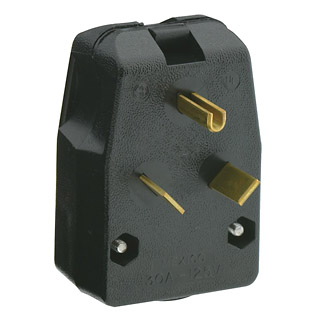

Image thumbnail 1
Image thumbnail 2
Email

Leviton 830-T 125 Volt 30 Amp 2-Pole 3-Wire NEMA TT-30P 2 Hp Black Thermoplastic Grounding Angled Polarized Straight Blade Plug

Manufacturer: Leviton | Catalog # 830-T | Codale Part # 43274
$47.63/ea
ea
Log in or register to view your price, purchase history, and more!
1 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet
Leviton offers a large selection of 15, 20, 30 and 50 Amp Commercial Grade Straight Blade Plugs and Connectors, available in a wide variety of features. These rugged performers are moisture, chemical and abuse-resistant, And they're ideal for indoor and outdoor use. Our EPTR rubber-backed plugs and connectors stand up to rough use, protecting against dirt and moisture. The deep-slotted, backed-out terminal screws draw backwire clamps securely over stripped leads for maximum conductivity.

Technical Information

Amperage
30 Amp
Applications
Industrial
Blade Type
Brass
Body Material
Thermoplastic
Conductor Size
14-6 AWG
Contact Material
Brass
Cord Size
0.687 - 0.875 in
Dielectric
2000 V
Flamability Class
Rated V-2 Per UL94
Grounding
Grounding
Horsepower
2 hp
Material
Nylon
Mounting Type
Surface
NEMA
TT-30P,WD-6
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Rated Insulation Voltage
2000 V
Screw Type
Steel,Zinc-Plated
Size
3.49 H x 2.56 W IN
Standard
ANSI C-73
Temperature Rating
-40 degrees C to 60 degrees C
Temperature Rise
150 %
Terminal Size
14-6 AWG
Type
Angled Trailer
Voltage
125 Volt
Wire Count
3
Wire Size
0.687-0.875 in

Manufacturer Information

Brand
Leviton
Sub Brand
Black & White

General Product Info

12-Digit UPC
078477816639
Color
Black,Black
Environmental Conditions
UL 94 Requirements, V2 Rated Flammability
Product UPC
07847781663
Weight
0.3800 lb

Dimensions

Warranty Length
2 yr

Certifications and Compliance

Country of Origin
Mexico
