Product image for PAN STP6X9BU CU Patch Crd,Cat 6A,S/
Image thumbnail 0
Image thumbnail 1
Email

PAN STP6X9BU CU Patch Crd,Cat 6A,S/

Manufacturer: PANDUIT | Catalog # STP6X9BU | Codale Part # 4327659
$89.40/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page

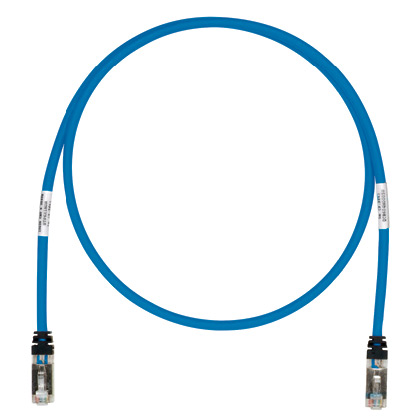

This TX6A™ 10Gig Cat 6A STP Patch Cord is a 9-Foot, Blue cord constructed of 26 AWG, shielded, twisted pair, stranded, CM/LSZH cable and with high-performance modular plugs. Its tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. The slender strain relief boot provides easy access in high-density applications. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.

Technical Information

Applications
(1) Stacking switched and switch-to-switch links(2) Aggregation of Gigabit Ethernet channels(3) Streaming video(4) Scientific modeling(5) Storage area networks(6) Real-time intensive financial transactions(7) Animation(8) Medical imaging
Boot Color
Black
Cable Type
26 AWG S/FTP
Conductor Material
Copper
Conductor Size
26 AWG
Conductor Type
Stranded
Connector Type
Modular Plug
Material
Copper
Max Operating Temperature
140 degrees F
Min Operating Temperature
14 degrees F
Performance Level
Category 6A
Plug Type
Modular Plug with Bulkhead and Dust Cap
Temperature Rating
140 degrees F
Type
Category 6A
Wire Size
26 AWG

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
PanNet

General Product Info

12-Digit UPC
074983011841
Color
Blue
Jacket Material
LSZH Material
Product UPC
07498301184
UNSPSC
43223303,43223303
Weight
0.3500 lb

Dimensions

Cable Length
9 ft
Length
9 Inch
Outer Diameter
0.24 in
Outside Diameter
6.1 mm
Overall Length
9 ft

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
China,Mexico,Romania
Standards and Certifications
  • Standards Met: Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA, meets ANSI/TIA-1096-A requirements (formerly FCC Part 68), meets IEC 60603-7, meets IEC 60332-1, IEC 60754-1, IEC 61034-2, UL 1863 approved, Rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4, RoHS Compliant
