HWDK SNAP20UACBK USB CHG SNAP 20A12

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # SNAP20UACBK | Codale Part # 4327805
$63.20/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Installation / Instruction Manual

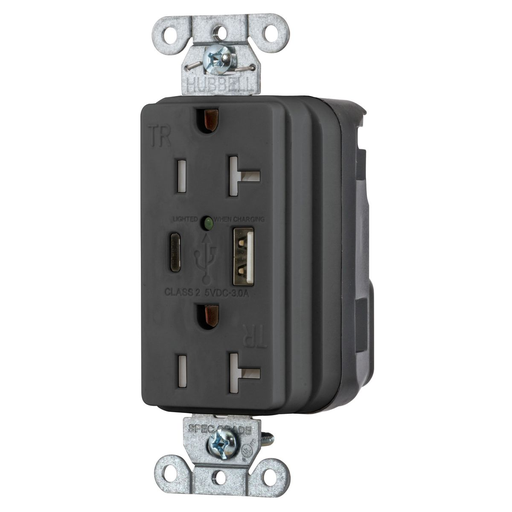

SNAPConnect® USB Charger Receptacle, one USB Type A and one Type-C port, 3.0 Amp, 5 Volt DC, Black

Technical Information

Amperage
20 Amp
Applications
Power and USB Charging
Conductor Size
14-10 AWG
Current
20 Amp
Dielectric Strength
Withstands 1,500V minimum Complies with USB BC1.2 Battery Charging and 3.0 Power Delivery Specifications
Material
Thermoplastic
NEMA
5-20R
Number of Poles
2-2 Pole
Number of Wires
3,3
Size
Standard Sized Product
Style
Style Line Decorator
Temperature Rating
Maximum continuous 75degrees C, minimum -40degrees C (w/o impact)
Type
One USB Type-A and one Type-C port
Voltage
125 Volt
Wire Size
14-10

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Straight Blade Devices

General Product Info

12-Digit UPC
883778308482
Color
Black
Product UPC
88377830848
Weight
0.3000 lb

Dimensions

Height
1.9 Inch
Length
4.2 Inch
Width
2.2 in

Certifications and Compliance

Country of Origin
China
Features
  • Fast Charge USB Ports
  • Combination Ports, One Type A, One Type C
  • High Power 3 Amp, up to 9 Volt USB Output
  • USB Ports Rated 10,000 Cycles
  • Commercial Grade Receptacle
