Panduit STP28X3MIG Cat 6A 28 AWG Shielded Patch Cord, 3m, IG

Manufacturer: PANDUIT | Catalog # STP28X3MIG | Codale Part # 4330353
$90.29/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Installation / Instruction Manual

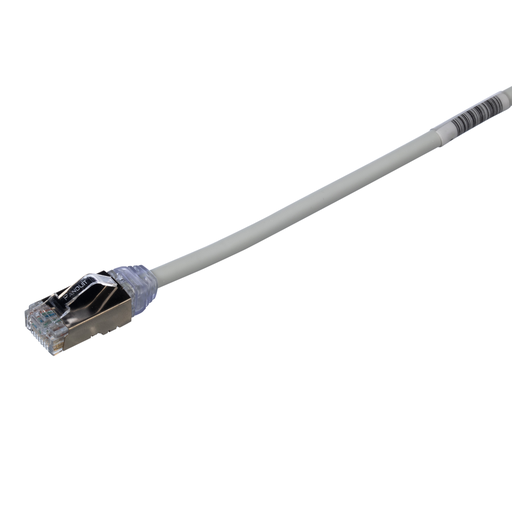

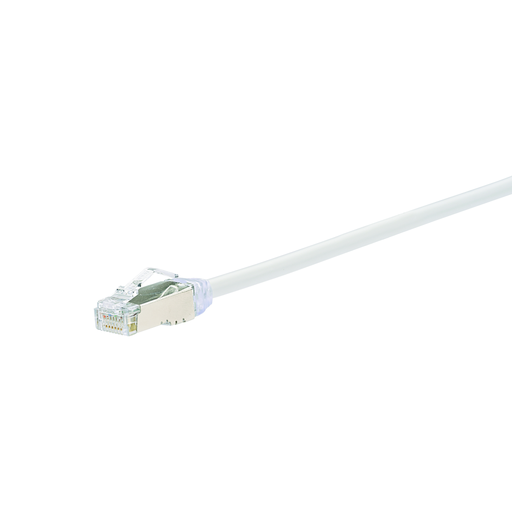

The TX6A-28™ Cat 6A Shielded Patch Cord is constructed of 28 AWG, shielded, twisted pair, solid, CM/LSZH cable with enhanced performance modular plugs. The use of 28 AWG cable ensures that this patch cord has a small diameter, making it easy to install and work with. The patented tangle free latch prevents snags and provides easy release saving time on frequent moves, adds, and changes. The patch cord is 3 meters in length, 0.185 inches (4.7mm) nominal in diameter, and international gray.

Technical Information

Applications
Shielded
Boot Color
Black
Cable Type
28 AWG F/UTP
Conductor Material
Copper
Conductor Size
28 AWG
Conductor Type
Solid
Max Operating Temperature
75 degrees C
Min Operating Temperature
-10 degrees C
Performance Level
Category 6A
Plug Type
Modular Plug
Standard
ANSI\IEEE (Category C-62.41, C-62.45),CULus Listed (1449),NEMA
Temperature Rating
167
Type
Category 6A, Small Diameter
Wire Size
28 m

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
PanNet

General Product Info

12-Digit UPC
074983014132
Color
Light Gray
Jacket Material
LSZH Material
Product UPC
07498301413
Weight
0.2000 lb

Dimensions

Length
9.84 Inch
Outer Diameter
4.7 mm
Outside Diameter
4.7 mm
Overall Length
3 m

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
China,Mexico,Romania
Standards and Certifications
  • Standards Met: Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all frequencies up to 500 MHz; Meets ANSI/TIA-1096-A; Meets IEC 60603-7; Meets IEC 60332-1, IEC 60754-1, IEC 61034-2; UL 1863; Rated for 2500 cycles with IEEE 802.3af / 802.3at and 802.3bt type 3 and type 4; RoHS Compliant
