HWDK HBL2656 LKG FLG-RCPT, 30A 600V

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL2656 | Codale Part # 4331220
$193.09/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Locking Devices, Twist-Lock®, Industrial, Flanged Receptacle, 30A 600V AC, 2-Pole 3-Wire Grounding, L9-30R, Screw Terminal, White.

Technical Information

Amperage
30 Amp
Applications
Insulgrip
Conductor Size
12-8 AWG
Current
30 Amp
Dielectric Strength
Withstands 2,000V minimum
Grounding
Grounding
Material
Thermoplastic
Mounting Type
Screw

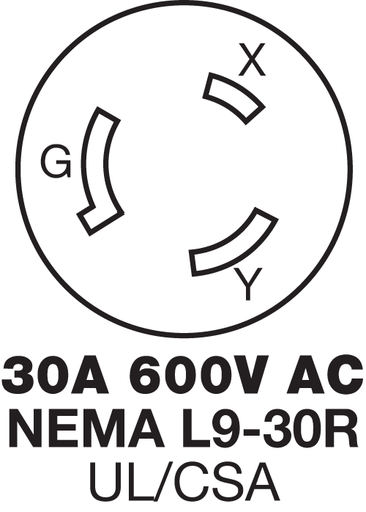

NEMA
L9-30R
Number of Phases
1 Phase
Number of Poles
2 Pole
Number of Wires
3 Wire
Operating Temperature
-40 degrees C
Size
Standard Sized
Standard
CSA C22.2 No.42,Fed.Spec. W-C-596,UL 498
Tc Connection
Screw Terminal
Type
Single
Voltage
600 Volt
Wattage
18000 Watt
Wire Count
3
Wire Size
16-8 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Twist-Lock®

General Product Info

12-Digit UPC
783585039077
Color
White
Environmental Conditions
Indoor Dry Unless Protected by Additional Means
Product UPC
78358503907
Weight
0.25 lb

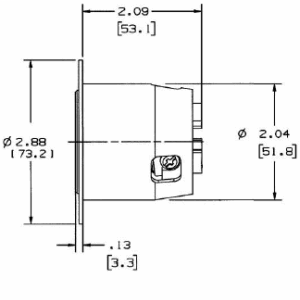

Dimensions

Height
2.09 Inch
Length
2.88 Inch
Width
2.88 in

Certifications and Compliance

Country of Origin
USA
Features
  • Backwired terminations for ease of installation
  • #10-32 Multiple drive terminal screws (Slotted, Phillips, Robertson)
  • Mounting screws included
  • Standard
