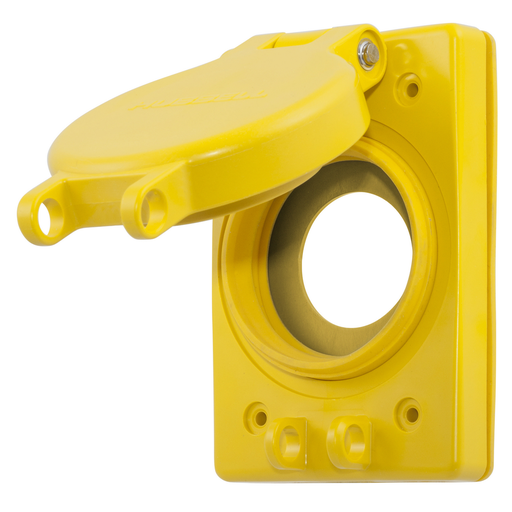

Hubbell HBL6800 WP LIFT COVER ASSY, LCK 30A, LESS RECEP

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL6800 | Codale Part # 4333475
$50.94/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Watertight Devices, Accessories, Weather Protective Lift Cover, Yellow, For use with locking 30A receptacles

Technical Information

Applications
Power Connection
Flamability Class
UL94 V-0
Material
Non-Metal
Operating Temperature
-40 degrees C

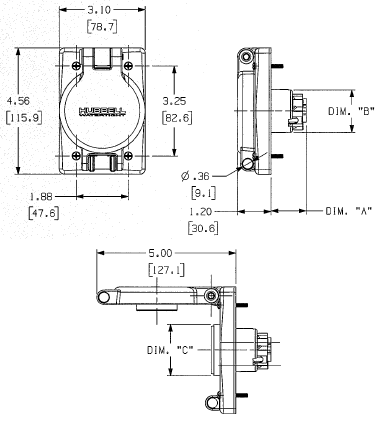

Size
4.56 in x 3.10 in x 1.20 in
Standard
ANSI Standards,Meets NEMA WD-1,WD-6
Type
Lift Covers

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Weatherproof Covers

General Product Info

12-Digit UPC
783585456515
Color
Yellow
Construction
Molded
Product UPC
78358545651
Shape
Rectangle
Weight
0.3000 lb

Dimensions

Height
1.2 Inch
Length
4.56 Inch
Width
3.10 in

Certifications and Compliance

Country of Origin
USA
Features
  • Impact resistant PBT cover plate
  • Stainless steel hinge spring and pin
  • Thermoplastic elastomer seal
