Caddy TSR122038RL Caddy Rod Lock Telescoping Strut Replacement, 3/8" Rod

Manufacturer: Caddy Fasteners | Catalog # TSR122038RL | Codale Part # 4333916
$4,944.99/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page

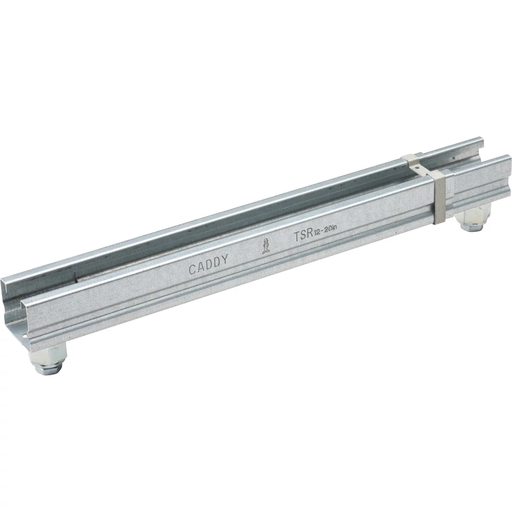

nVent CADDY Rod Lock Telescoping Strut Replacement, 3/8" Rod

Technical Information

Applications
For Quick Creation, Installation and Adjustment Multi-Level Trapeze Assemblies
Material
Steel
Size
3/8 in
Type
Replacement

Manufacturer Information

Brand
nVent Caddy
Sub Brand
CADDY

General Product Info

12-Digit UPC
782856916475
Finish
Pre-Galvanized
Product UPC
78285691647
Weight
0.77 kg
Features
  • Easy \"push-to-install\" design allows installers to simply push the threaded rod through the mounting hole, instantly holding it in position
  • Telescopes to the desired length and is locked in place by snapping closed a spring retainer clip
  • Standard strut profile runs the entire length of the part, allowing most standard fittings to be placed anywhere between the rods
  • Allows installers to prefabricate complex assemblies and quickly lift and lock them into place?
  • Lock nut can be finger tightened, locking the rod in place
  • Allows for the quick creation, installation, and adjustment of multi-level trapeze assemblies
  • Captive threaded nuts enable fastening to threaded rod supports without loose parts

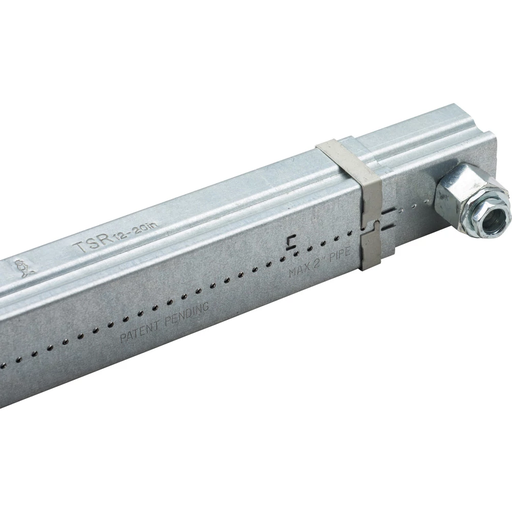

  • Integrated ruler displays space between hanger rods in inches and centimeters

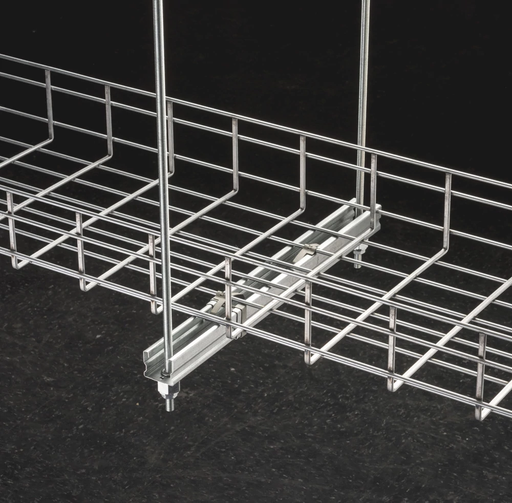

  • Supports up to seven 2\" (50 DN) conduits, six 2\" (50 DN) water filled pipes at 10' (3 m) spacing, or up to 18\" (450 mm) cable tray
  • Conduit can be supported on the top and bottom, eliminating the need for double sided strut
  • Conduit and pipe can be placed directly on the strut profile, saving vertical space in buildings with limited room for installation
