Thomas & Betts F2054 1/0 AWG 50 mm.. Insulated Ferrule

Manufacturer: ABB Thomas & Betts | Catalog # F2054 | Codale Part # 4334916
$1,056.11/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page

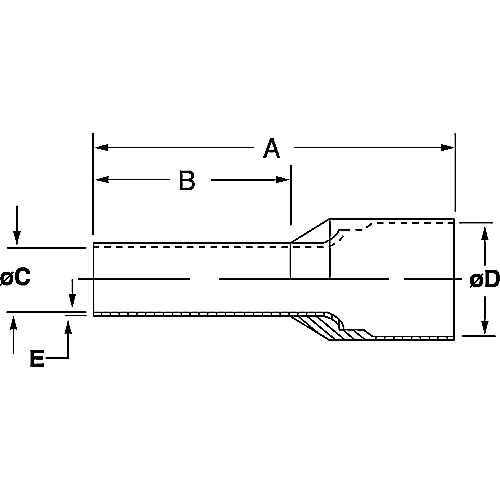

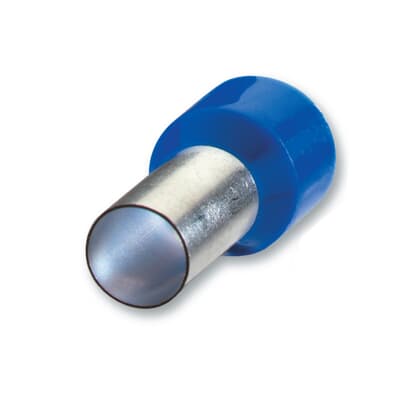

Polypropylene-Insulated Ferrule, Total Length 1.614 Inches/41mm, Pin Length .984 Inches/25mm, Pin Diameter .413 Inches/10.5mm, Base Diameter .591 Inches/15.0mm, Wire Range 1/0 AWG/50.00mm2, Color Blue, Copper, Tin Plated

Technical Information

Conductor Size
1/0 AWG
Contact Material
Copper
Insulation Type
Insulated Nylon
Material
Copper
Standard
UL E489056
Strip Length
0.984 in
Temperature Rating
105 degrees C
Type
Standard
Wire Size
0 AWG

Manufacturer Information

Brand
ABB
Sub Brand
Sta-Kon®

General Product Info

12-Digit UPC
786210335582
Color
Blue
Finish
Tin Plated
Product UPC
78621033558
Weight
1.2800 lb

Dimensions

Inside Diameter
0.413 in
Overall Length
1.614 in
Features
  • Ferrules ensure reliable electrical connections when terminating conductors in screw clamp terminal blocks.
Notes
  • Ferrule dimensions conform to DIN 46228, Part 4.
