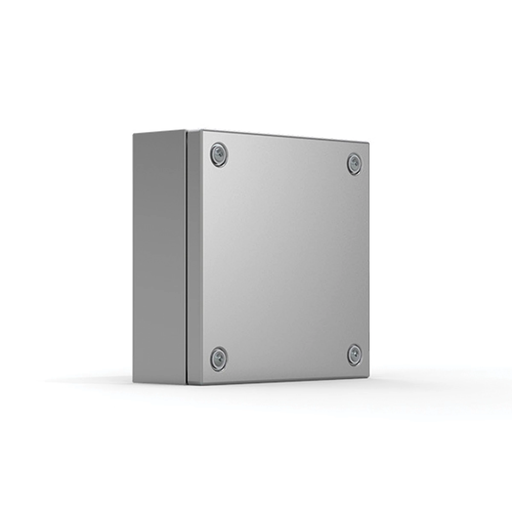

Product image for NVENT HOF SSTB151508 IP66 Term Box
Image thumbnail 0
Image thumbnail 1
Email

NVENT HOF SSTB151508 IP66 Term Box

Manufacturer: nVent Hoffman | Catalog # SSTB151508 | Codale Part # 4334958
$525.69/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Terminal Boxs, are well suited for indoor and outdoor environments providing corrosion resistance. This Terminal Box, Stainless Steel, SSTB151508 item measures SSTB inches with a material of 5.91x5.91x3.15, Stainless 304.

Technical Information

Applications
Stationary Machinery and Equipment Outside Factory
Body Thickness
1 mm
Cable Entry
No
Material
Stainless Steel
Number of Outlets
1
Size
5.91 x 5.91 x 3.15 inch
Type
Smooth Barrel, Cylindrical

Manufacturer Information

Brand
nVent Hoffman

General Product Info

12-Digit UPC
783510528867
Color
Unpainted
Construction
Body: 18 gauge Door: 16 gauge
Finish
Brushed
Product UPC
8713574159969
Weight
2.49 lb

Dimensions

Depth
3.15 Inch
Height
5.91 Inch
Length
6.28 Inch
Width
5.91 in
Features
  • Material: AISI 304L pre-grained stainless steel / AISI 316L (on request). Body: 1 mm. Cover: 1.5 mm.
  • Body: Folded and seam welded. Four M6x13 studs for bottom profile / mounting plate fixation. For ease of installation, each back corner of the enclosure is laser-marked to precisely indicate where to drill holes and affix AWS wall mounting brackets.
  • Gasket: Sealing is ensured by an injected polyurethane gasket. For AISI 316L, sealing is ensured by an injected silicone gasket.
  • Earthing: M8x18 mm earthing studs in body and cover, M8 nuts, earthing washers and earthing labels.
  • Protection: IP 66 | TYPE 4X, 12 | IK 08.
  • Finish: 400 pre-grained stainless steel.
  • Delivery: Body, cover, cover screws, fixing screws, cover plugs and earthing facilities.
