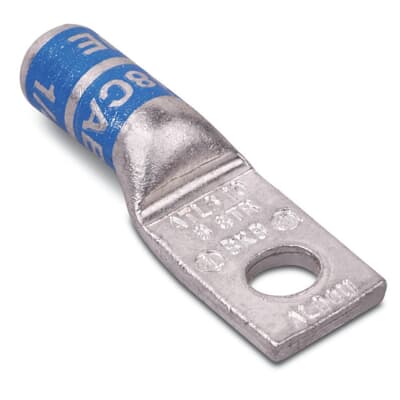

Blackburn ATL1-38 Aluminum Compression Lug

Manufacturer: ABB Thomas & Betts | Catalog # ATL1-38 | Codale Part # 4334963
$3,587.19/c (100 ea)
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Installation / Instruction Manual
Type ATL Aluminum One-Hole Lug, Max 35kV, Wire Size 1 Str, 3/8 Inch Bolt Hole, Tin Plated, Die Color Code Gold

Technical Information

Applications
For Medium Voltage Applications
Barrel Length
Standard
Barrel Shape
Standard
Barrel Type
Chamfered
Cable Size
1 AWG
Conductor Size
1 AWG
Die Color
Gold
Material
Aluminum
Number of Holes
1 Hole
Number of Studs
1
Standard
UL E9809
Stud Size
3/8 in
Tongue Angle
Straight
Type
Aluminum One-Hole Lug
Voltage
35 Volt

Manufacturer Information

Brand
Thomas & Betts (T&B)
Sub Brand
Blackburn®

General Product Info

12-Digit UPC
783786610808
Color
Gold
Finish
Tin Plated
Product UPC
78378661080
Weight
0.4190 lb

Dimensions

Height
2.3 Inch
Width
2.8 in
Certifications
  • CSA
  • UL
Features
  • Made of high-conductivity seamless aluminum tubing. Tin plated for corrosion resistance.
  • Color-coded for matching die identification. Prefilled with oxide inhibiting compound.
  • Specifically chamfered barrel for ease of installation.
  • UL Listed when installed with Blackburn, Burndy, T&B or Andersons Tools.
Notes
  • For use with aluminum conductor (concentric, compressed or compact). Also listed for use with copper conductor.
