Burndy E3C34G1 Multi-tap, range-taking cast copper alloy connector designed to take 3 conductors from a single secondary transformer outlet

Manufacturer: Hubbell-Burndy | Catalog # E3C34G1 | Codale Part # 4335105
$411.25/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet
Multi-tap, range-taking cast copper alloy connector designed to take 3 conductors from a single secondary transformer outlet.

Technical Information

Applications
Substation
Conductor Size
2/0 AWG
Connection Type
T-Connector
Material
Copper
Plated?
Yes
Plating Type
Unplated
Type
Adapters

Manufacturer Information

Brand
Hubbell Incorporated
Sub Brand
Burndy

General Product Info

12-Digit UPC
781810002070
Product UPC
78181000207
Weight
3.0600 lb

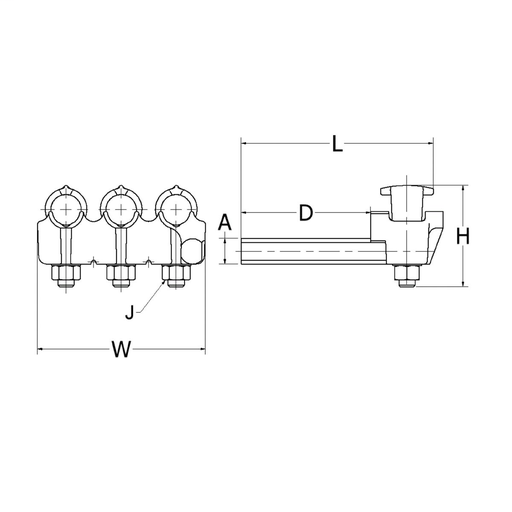

Dimensions

Diameter
3-3/4 Inch
Height
3.88 Inch
Length
6-1/4 Inch
Overall Length
159 mm
Width
5.16 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
USA
CSA
No
Features
  • Copper Transformer Tap Adapter
  • Tension Rating: ANSI C119.4 Class 3 (Non Tension)
  • Multi-tap, range-taking cast copper alloy connector designed to take 3 conductors from a single secondary transformer outlet
