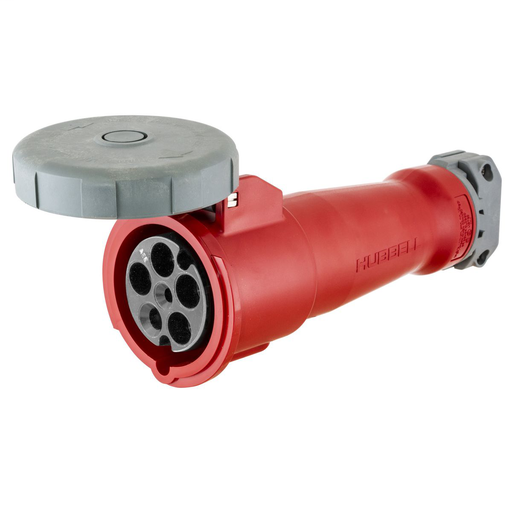

Product image for HWDK HBL520C6W PS,IEC,CONN,4P5W,16/
Image thumbnail 0
Image thumbnail 1
Image thumbnail 2
Email

HWDK HBL520C6W PS,IEC,CONN,4P5W,16/

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL520C6W | Codale Part # 4336399
$517.58/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Connector, 16/20 A, 200/346-240/415 V;220/380-240/415 V, 4-Pole 5-Wire Wire Grounding, Terminal Screws, Red, 4X and IP69k

Technical Information

Amperage
16/20 Amp
Applications
High Ampacity Watertight Connections
Conductor Size
14-10 AWG
Dielectric Strength
Withstands 3000V Minimum in
Material
Thermoplastic
Number of Conductors
5-Wire Grounding
Number of Poles
4 Pole
Number of Wires
5-Wire
Size
Standard
Standard
CSA,File LR280C,IEC 60309-1 IEC 60309-2,UL,UL1682
Tc Connection
Pressure Screw Terminal
Temperature Rating
Maximum Continuous: 75?degrees C; Minimum Continuous: -40?degrees C w/o impact, -25?degrees with impact.
Type
Watertight Connector Body
Voltage
200/346-240/415 Volt;220/380-240/415 Volt Volt
Wire Size
14-10 AWG

Manufacturer Information

Brand
Hubbell Wiring Device-Kellems
Sub Brand
Pin and Sleeve Devices

General Product Info

12-Digit UPC
783585372709
Color
Red
Environmental Conditions
Watertight
Product UPC
78358537270
Weight
1.5000 lb

Dimensions

Height
4-1/4 Inch
Length
9 Inch
Width
4.300 in

Certifications and Compliance

Country of Origin
USA
  • Watertight
  • Color coded housings by voltage for easy identification
  • Insulated Non-Metallic housing
  • Corrosion-resistant self-closing gasketed cover
