PAN UTP28X2GR Cat 6A 28 AWG UTP Cop

Manufacturer: Panduit | Catalog # UTP28X2GR | Codale Part # 4338814
$55.43/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Installation / Instruction Manual

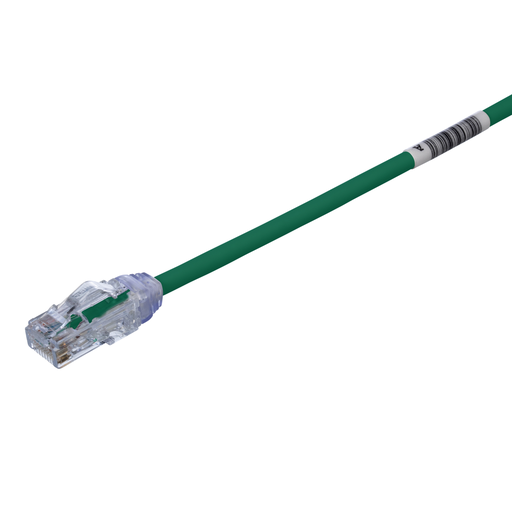

The TX6A-28™ Cat 6A UTP Patch Cord is a 2-Foot, 0.185-inch (4.7mm) diameter, Green cord constructed of 28 AWG unshielded, twisted pair, solid, CM/LSZH cable with high-performance modular plugs. Its compact 28 AWG design simplifies installation and management. The tangle-free latch prevents snags and ensures a fast release, streamlining moves, adds, and changes. Enabled with RapidID, the product has pre-installed barcodes for simple port mapping using RapidID software.

Technical Information

Applications
(1)10GBASE-T Ethernet(2)Data center I/O Consolidation(3) Data center server virtualization(4)Backbone aggregation(5)Parallel processing and high speed computing
Boot Color
Clear
Cable Type
28 AWG F/UTP
Conductor Material
Copper
Conductor Size
28 AWG
Conductor Type
Solid
Connector Type
Modular Plug
Material
Copper
Max Operating Temperature
140 degrees F
Min Operating Temperature
14 degrees F
Performance Level
Category 6A
Plug Type
Modular Plug
Standard
CSA,NOM,UL
Temperature Rating
167 degrees F
Type
Category 6A
Wire Size
28 AWG

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
PanNet

General Product Info

12-Digit UPC
074983994496
Color
Green
Jacket Material
LSZH Material
Product UPC
07498399449
Weight
0.0700 lb

Dimensions

Cable Length
2 ft
Length
2 Inch
Outside Diameter
4.7 mm
Overall Length
2 ft

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
China,Costa Rica,Mexico,Romania
Standards and Certifications
  • Standards Met: Exceeds all ANSI/TIA-568.2-D Category 6A and ISO 11801 Class EA standards for all frequencies from 1 to 500 MHz; Meets ANSI/TIA-1096-A (formerly FCC Part 68); IEC 60603-7; UL 1863 and CAN/CSA-C22.2 (UL File E129886), RoHS Compliant, Supports IEEE 802.3af/802.3at and 802.3bt type 3 and type 4 PoE applications; RoHS Compliant; wired to be compatible with both T568A and T568B wiring schemes.
