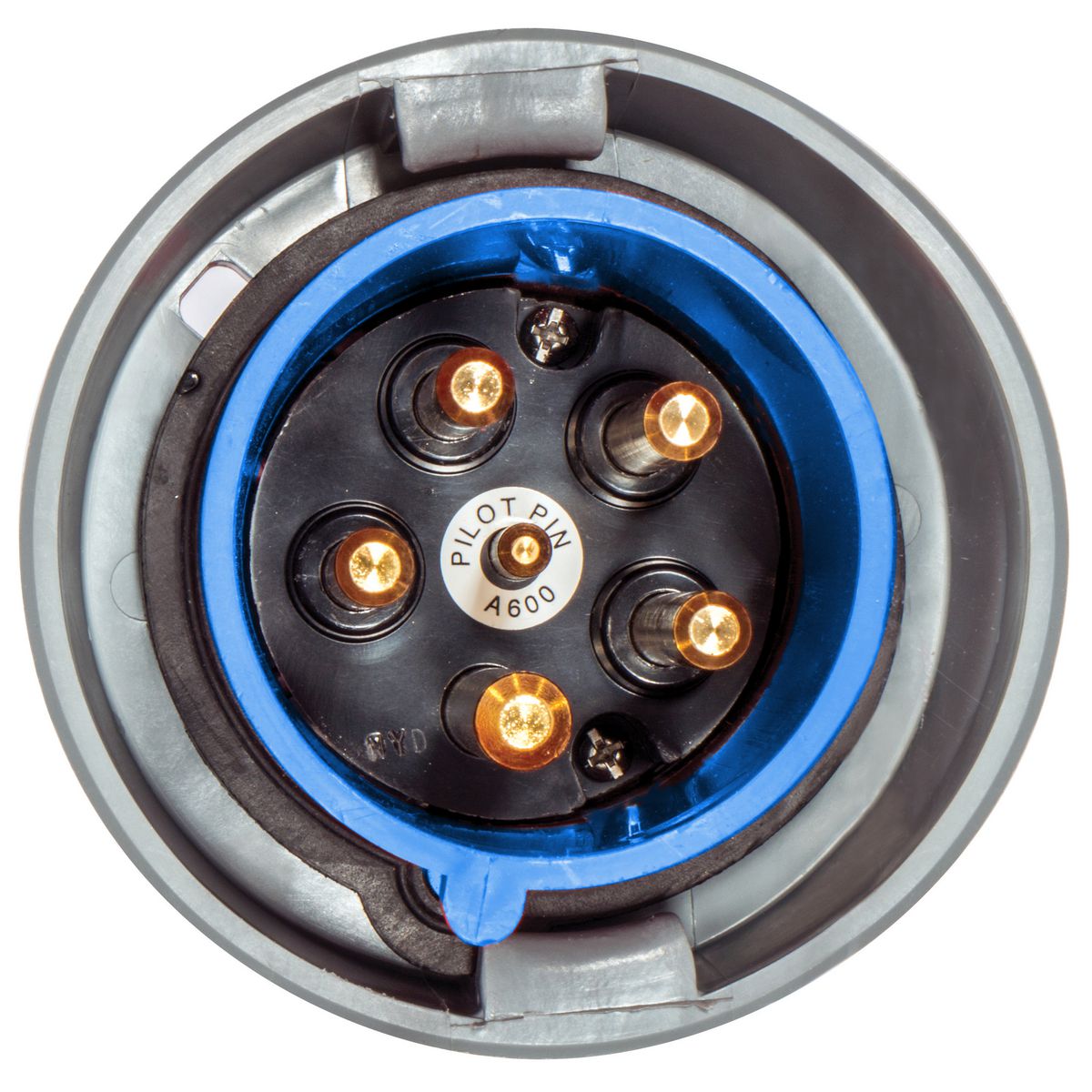

Product image for HWDK HBL460R6WP RECPT,3P4W,60/63A,
Image thumbnail 0

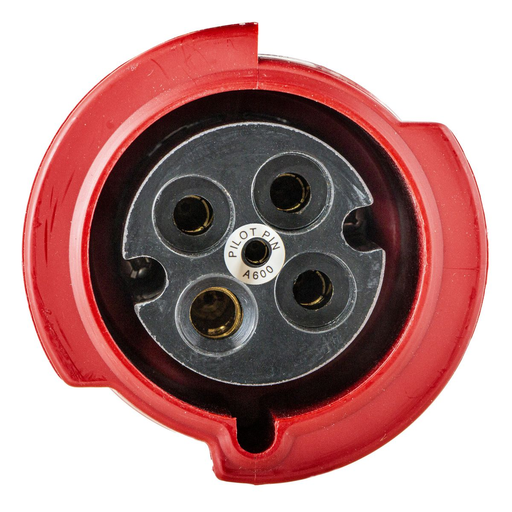

Image thumbnail 1
Image thumbnail 2
Email

HWDK HBL460R6WP RECPT,3P4W,60/63A,

Manufacturer: Hubbell Wiring Device-Kellems | Catalog # HBL460R6WP | Codale Part # 4340198
$953.02/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Primary Spec Sheet
Heavy Duty Products, IEC Pin and Sleeve Devices, Industrial Grade, Female, Receptacle w/ Pilot Sleeve, 60/63 A, 380-415 VAC, 3-Pole 4-Wire Wire Grounding, Terminal Screws, Red, 4X and IP69k

Technical Information

Amperage
60/63 Amp
Applications
High Ampacity Watertight Connections
Conductor Size
8-2 AWG
Dielectric Strength
Withstands 3000V Minimum in
Material
Thermoplastic
Number of Poles
3 Pole
Number of Wires
4 Wire
Standard
CSA,File LR280C,IEC 60309-1 IEC 60309-2,UL,UL1682
Temperature Rating
75 degrees C, -40 degrees C
Type
TVSS
Voltage
380-415 VAC
Wire Size
8-2 AWG

Manufacturer Information

Brand
Hubbell Incorporated

General Product Info

12-Digit UPC
783585365619
Color
Amber,Green,Red,White
Environmental Conditions
Watertight
Product UPC
78358536561
Weight
2.4500 lb

Dimensions

Height
4.8 Inch
Length
6.4 Inch
Width
5.6 in

Certifications and Compliance

Country of Origin
USA
Features
  • Insulated Non-Metallic housing
  • Color coded housings by voltage for easy identification
  • Corrosion-resistant self-closing gasketed cover
  • Watertight
