Klein CL220 Digital Clamp Meter, AC Auto-Ranging 400 Amp with Temp

Manufacturer: Klein Tools | Catalog # CL220 | Codale Part # 4340581
$74.97/ea
ea
Log in or register to view your price, purchase history, and more!
13 available

For Delivery

Not in local stock *
Check your local branch
Primary Spec Sheet MDM Safety Data Sheet

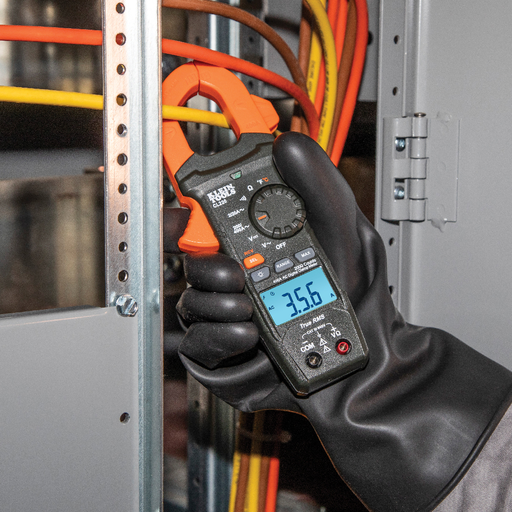

The CL220 measures AC current and NCVT via clamp and AC/DC voltage, resistance, and continuity via test-leads, and temperature with thermocouple. The meter features automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy. Additionally, a backlit LCD makes viewing in low light easy.

Technical Information

Applications
Measures AC Current and NCVT via Clamp and AC/DC Voltage, Resistance, and Continuity via Test-leads, and Temperature with Thermocouple
Battery Type
(3) AAA
Current
400 Amp
Display Type
Backlit LCD
Jaw Capacity
1.61 in
Material
ABS,Electronic Components
Number of Rows
3
Resistance
20 M?
Type
Auto-Ranging, TRMS
Voltage
600 Volt

Manufacturer Information

Brand
Klein Tools, Inc.

General Product Info

12-Digit UPC
092644692857
Product UPC
09264469285
Weight
11 oz

Dimensions

Depth
8.45 Inch
Height
1-1/2 Inch
Length
8.45 Inch
Overall Length
8.45 in
Width
3.5 in

Certifications and Compliance

Country of Origin
China
Features
  • Measures AC current and NCVT via clamp and AC/DC voltage, resistance, and continuity via test-leads, and temperature with thermocouple
  • Non-contact voltage tester integrated into the clamp jaw
  • Backlit LCD for ease of viewing in low light
  • Automatically ranging True Root Mean Squared (TRMS) measurement technology for accuracy
  • Test lead holder on side of clamp and optional magnetic hanger for meter (Cat. Nos. 69445 or 69417) for hands free operation
  • Measures temperature with a K-Type thermocouple probe
  • Auto-Range, Hold, Data Hold, and Max value
  • Auto-power off after 10 minutes to conserve battery life
  • Includes a carrying case, test leads with CAT III/CAT IV safety caps, thermocouple, instructions, and 3 x AAA batteries
  • Low battery indicator and easily accessible battery compartment
  • Built to withstand a 6.6-Foot (2 m) drop
  • CAT III 600V, Class 2, Double insulation safety rating
  • Meets requirements for use in basic and controlled electromagnetic environments like residential, office and light-industrial locations
  • Automatically Ranging True Root Mean Squared (TRMS) Measurement Technology for Accuracy; NCVT; Added Temperature
  • Clamp Meter measures AC current and NCVT via clamp and AC/DC voltage, resistance, and continuity via test-leads, and temperature with thermocouple
Warnings
  • Read, understand and follow all instructions, cautions and warnings attached to and /or packed with all test and measurement devices before each use.
  • Do not attempt to measure resistance or continuity on live circuits.
  • Before each use verify meter operation by measuring a known voltage or current.
  • Do not use the meter during electrical storms or in wet weather, and do not use the meter or test leads if they appear to be damaged.
  • Usage of this meter in any way other than that specified by the manufacturer can impair safe operation, resulting in severe injury or death.
Replaced By Products
  • 69401
