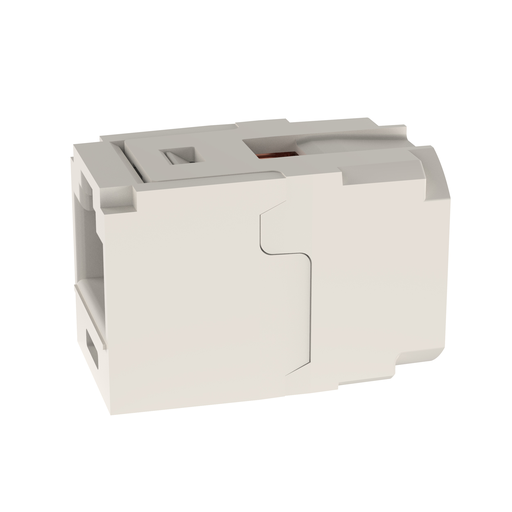

Image thumbnail 2

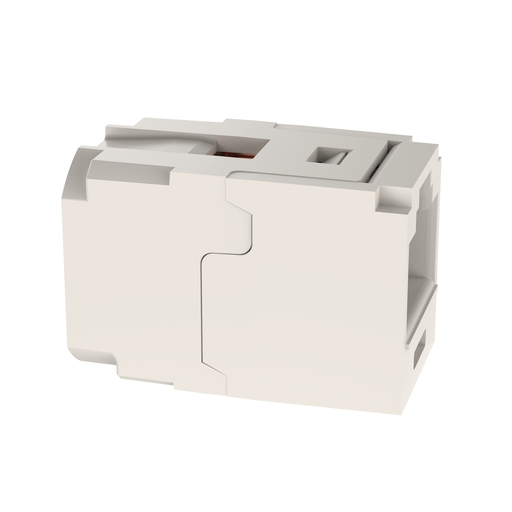

Image thumbnail 3
Image thumbnail 4
Email

Panduit CC688IW Mini-Com® Cat 6 UTP RJ4

Manufacturer: PANDUIT | Catalog # CC688IW | Codale Part # 4340894
$49.91/ea
ea
Log in or register to view your price, purchase history, and more!
Experiencing long lead times. Please call for availability.
Buy American Compliant Buy American Compliant Primary Spec Sheet Product Catalog Page Installation / Instruction Manual
The Mini-Com® Cat 6 UTP RJ45 Coupler Module is designed and 100% factory tested to allow for up to two couplers to be used and meet channel performance requirements. Contacts are plated with 50 microinches of gold for superior performance. The coupler module is compatible with Mini-Com Modular Patch Panels and Faceplates. The coupler is off white.

Technical Information

Applications
For Digital Video and Broadband/Baseband Analog Video, Voice over Internet Protocol (VoIP)
Cable Entry
T568A/T568B
Cable Type
Category 6
Material
ABS Plastic
Max Operating Temperature
167 degrees F
Min Operating Temperature
-10 degrees C
Number of Positions
8
Performance Level
Category 6
Temperature Rating
-14 to 149 degrees F
Type
RJ45, Universal, 1 Port, 8 Wire

Packaging

Pkg Qty
1

Manufacturer Information

Brand
Panduit Corp.
Sub Brand
Mini-Com

General Product Info

12-Digit UPC
074983017829
Color
Off White
Product UPC
07498301782
Weight
0.0300 lb

Dimensions

Depth
1.09 Inch
Height
0.71 Inch
Overall Length
1.09 in
Width
0.62 in

Certifications and Compliance

Buy American Compliant
Y
Country of Origin
Mexico
Standards and Certifications
  • Standards Met: Exceeds Channel Requirements of ANSI/TIA-568.2-D and ISO 11801 Standards for the Respective Category with up to 2 couplers per channel, Meets IEC 60603-7, Supports 2500 Connection Cycles with IEEE 802.3af / 802.3at and 802.3bt Type 3 and Type 4, UL 1863 and UL 2043 and RoHS Compliant.
